Díly pro THROTTLE BODY

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 76041001000
THROTTLE BODY
12 322 Kč
2 75041085044
MAP SENSOR CPL. 07
3 332 Kč
3 75041013044
FUEL RAIL ASSY SET 07
1 801 Kč
4 76041023044
FUEL INJECTOR ASSY SET
3 751 Kč
15 75041085010
O-RING
102 Kč
16 75041085020
PLATE, STAY
102 Kč
17 75041085030
SCREW WASHER
36 Kč
18 75041023020
O-RING
132 Kč
19 75041013060
SCREW SHOULDER
102 Kč
20 75041013010
SCREW SHOULDER
94 Kč
21 75041023010
SEAL RING
193 Kč
22 61041085150
RUBBER SUPP. PRESSURE SENS. 06
73 Kč
23 61041085100
PRESSURE SENSOR 06
2 938 Kč
24 60031098001
HOSE 3,2X8,5 PER METER
212 Kč
25 61041088000
ROLLOVER SENSOR 05
1 035 Kč
26 61041088050
SHIM 4,3X15X1,25MM GALVANIZED
13 Kč
27 0912040253
AH SCREW DIN0912-M 4X25
5 Kč
28 61041080000
AMBIENT-AIR TEMPERATURE SENSOR
364 Kč
29 0081050121
EJOT PT SCREW K50X12
21 Kč
30 76041031000
ELECTRONIC CONTROL UNIT
11 566 Kč
31 76541030000
ECU RUBBER BRACKET
268 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

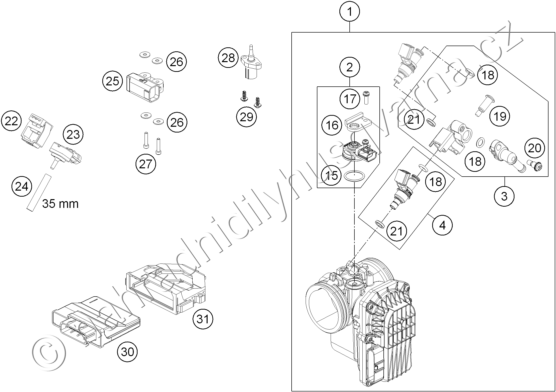

THROTTLE BODY

Zvětšit schéma THROTTLE BODY
THROTTLE BODY
