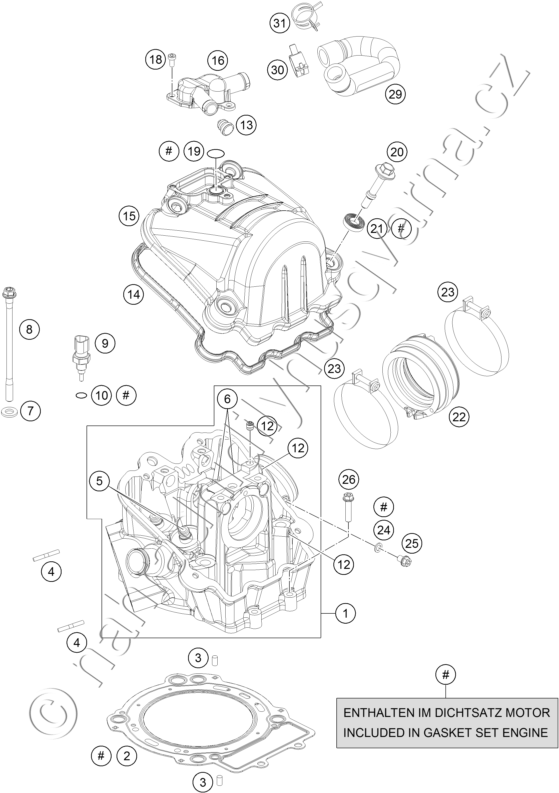

Díly pro CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7603602004452 CYLINDER HEAD CPL. |
18 601 Kč | |
| 2 | 76030036000 CYLINDER HEAD GASKET |
874 Kč | |
| 3 | 0474050100 GROOVED PIN DIN1474 5X10 |
33 Kč | |
| 4 | 0835080256 STUD DIN0835-M 8X25 10.9 |
52 Kč | |
| 5 | 60036026101 VALVE GIUDE EXHAUST |
188 Kč | |
| 6 | 60036025101 VALVE GIUDE INTAKE |
188 Kč | |
| 7 | 60036078050 SHIM 10,2X19X1,5MM 05 |
36 Kč | |
| 8 | 75036079000 CYLINDERHEAD SCREW M10X168WS14 |
148 Kč | |
| 9 | 75035047000 TEMPERATURE SENSOR WATER 07 |
680 Kč | |
| 10 | 0770100020 O-RING 10.00X2.00 SILICONE |
18 Kč | |
| 12 | 59030296000 SCREW PLUG |
151 Kč | |
| 13 | 76036052051 SEALING PLUG |
18 Kč | |
| 14 | 75036053000 VALVE COVER GASKET 07 |
326 Kč | |
| 15 | 75036052000 VALVE COVER 07 |
1 370 Kč | |
| 16 | 75036052050 BREATHER COVER 07 |
188 Kč | |
| 18 | 0025050106 HH COLLAR SCREW M5X10 TX30 |
20 Kč | |
| 19 | 0770150151 O-RING 15,00X1,50 VITON |
23 Kč | |
| 20 | 75036055000 VALVE MECHANISM COVER SCREW |
73 Kč | |
| 21 | 75036052010 DECOUPLING ELEMENT |
42 Kč | |
| 22 | 75036144000 RUBBER SLEEVE INTAKE FLANGE |
1 025 Kč | |
| 23 | 75036047000 HOSE CLAMP GEMI 70MM |
169 Kč | |
| 24 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 25 | 0025060086 HH COLLAR SCREW M6X8 TX30 |
29 Kč | |
| 26 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 29 | 76530088100 PREFORMED HOSE OIL STRAINER |
384 Kč | |
| 30 | 00049200121 CLAMP STD DN20 |
36 Kč | |
| 31 | 00049210121 CLAMP 21X12 STD-DES |
36 Kč |
