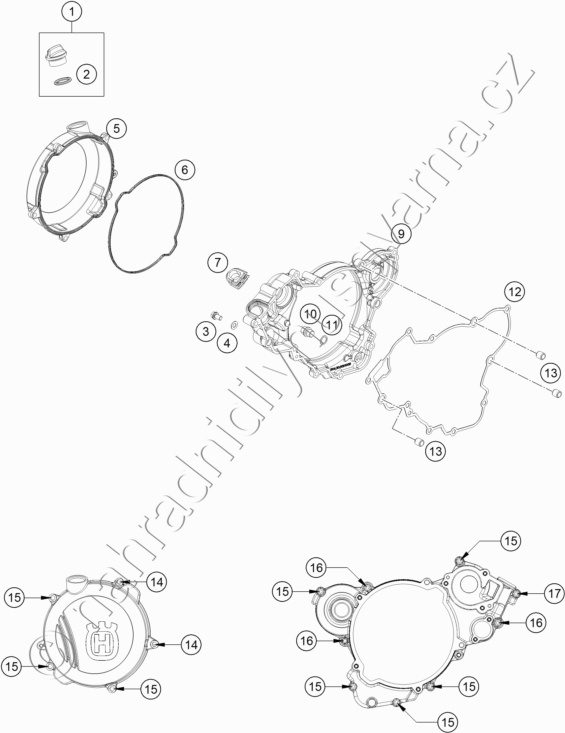

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 2 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 3 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 4 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 5 | 50430626000KA OUTER CLUTCH COVER |
1 426 Kč | |
| 6 | 50430027000 GASKET OUTER CLUTCH COVER |
217 Kč | |
| 7 | 50437091000 SEALING ELEMENT |
188 Kč | |
| 9 | 50430001044 INNER CLUTCH COVER CPL. |
3 866 Kč | |
| 10 | 0910100003 PLUG DIN0910-M 10X1 |
87 Kč | |
| 11 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 12 | 50430025000 GASKET INNER CLUTCH COVER |
199 Kč | |
| 13 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 14 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 15 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 16 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 17 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč |
