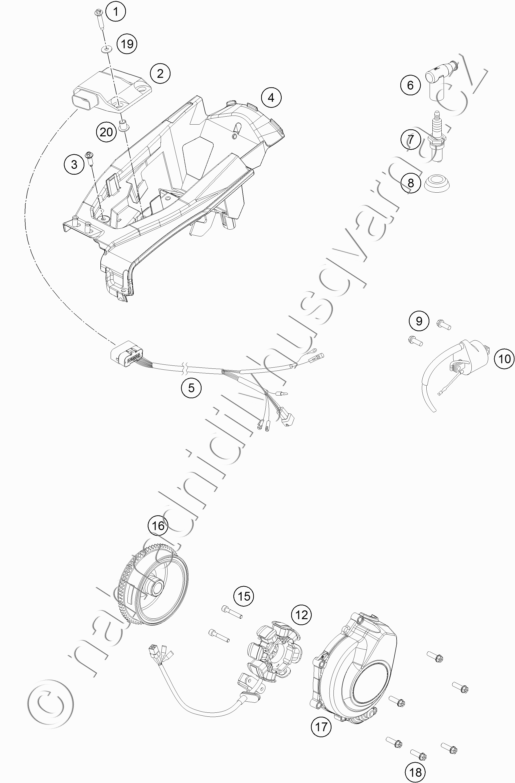

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0017060305 SPECIAL SCREW K60X30 WS=6 |
21 Kč | |
| 2 | 50439231000 ELECTRONIC BOX 125 18 |
6 186 Kč | |
| 3 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 4 | 25011055100 BATTERY BOX |
607 Kč | |
| 5 | 54839032200 WIRING HARNESS FOR CDI 2-ST.07 |
1 294 Kč | |
| 6 | 47039090000 SPARK PLUG CAP NGK REINFORC.04 |
481 Kč | |
| 7 | 51539093000 SPARK PLUG BR9ECMVX |
496 Kč | |
| 8 | 50439091000 SEALING SLEEVE |
292 Kč | |
| 9 | 0026060186 COLLAR SCREW M6X18 ISA30 |
18 Kč | |
| 10 | 59039006000 IGNITIONCOIL \'\'IG5128\'\' |
934 Kč | |
| 12 | 55139004100 STATOR |
4 425 Kč | |
| 15 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 16 | 50439105000 ROTOR |
5 567 Kč | |
| 17 | 50430702000KA IGNITION COVER TE |
1 389 Kč | |
| 19 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 20 | 60308006000 COLLAR BUSHING 6,2X9,2X15X12,5 |
53 Kč |
