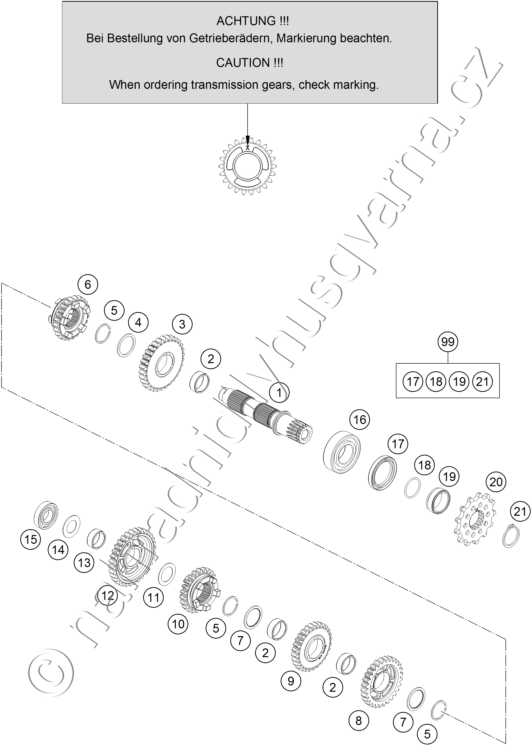

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50433010100 COUNTER SHAFT CPL. |
3 577 Kč | |
| 2 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED |
175 Kč | |
| 3 | 50433112000 IDLER 2ND GEAR NOT=31 |
1 682 Kč | |
| 4 | 54833044000 STOP DISC 25X31X1,5 |
73 Kč | |
| 5 | 0417024000 CIRCLIP WS24 |
25 Kč | |
| 6 | 50433116000 IDLER 6TH GEAR NOT=20 |
Na dotaz | 1 |
| 7 | 54833043000 STOP DISC 25X0,8X30X30X7H |
73 Kč | |
| 8 | 50433113000 IDLER GEAR 3RD GEAR 28T |
1 682 Kč | |
| 9 | 50433114000 IDLER 4TH GEAR NOT=26 |
1 682 Kč | |
| 10 | 50433115100 IDLER 5TH GEAR NOT=25 |
1 682 Kč | |
| 11 | 54833080000 STOP DISC 20,2X30X1 |
73 Kč | |
| 12 | 50433111000 IDLER 1ST GEAR NOT=33 |
1 682 Kč | |
| 13 | 0405202410 NEEDLE BEARING K20X24X10 |
374 Kč | |
| 14 | 56033030000 STOP DISC 17,2X30X1 |
158 Kč | |
| 15 | 0625160031 GROOVED BALL B. 16003 C4 J1 |
397 Kč | |
| 16 | 0625062054 BALL BEARING 6205 C3 NTN |
292 Kč | |
| 17 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 18 | 0770230020 O-RING 23,00X2,00 NBR70 |
17 Kč | |
| 19 | 50433030000 SPACER BUSHING 12,4 MM |
324 Kč | |
| 20 | 79233029013 SPROCKET 13T |
360 Kč | |
| 21 | 0471250200 CIRCLIP DIN0471 - 25X2 |
31 Kč | |
| 99 | 00050000949 COUNTER SHAFT REP. KIT 125 SX |
403 Kč |
