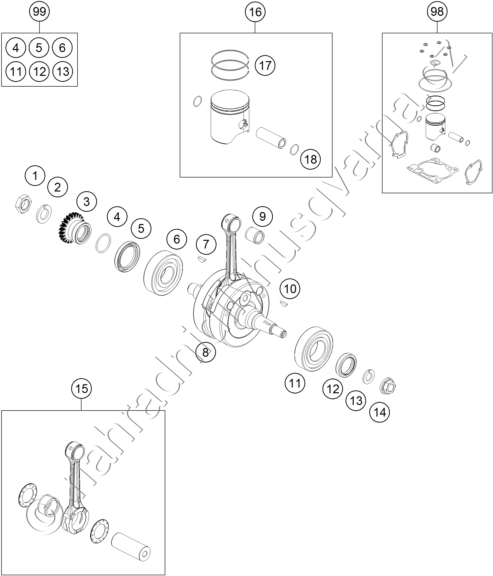

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50330029000 HEXAGON NUT M 16 X 1,5 - L/S |
138 Kč | |
| 2 | 50230029016 LOCKING RING VSK 16 |
39 Kč | |
| 3 | 50432023023 PRIMARY WHEEL 23T |
1 564 Kč | |
| 4 | 0770250020 O-RING 25,00X2,00 NBR 70 |
18 Kč | |
| 5 | 0760324564 SHAFT SEAL RING 32X45X6,5 BT |
235 Kč | |
| 6 | 0625063055 BALL BEARING 6305 JR2 CS36 |
549 Kč | |
| 7 | 0888040050 WOODRUFF KEY DIN 6888 4X5X13 |
21 Kč | |
| 8 | 50430018000 CRANKSHAFT |
12 246 Kč | |
| 9 | 51030034000 NEEDLE BEARING KBK 15X19X20 |
430 Kč | |
| 10 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 11 | 50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46 |
1 392 Kč | |
| 12 | 0760253570 SHAFT SEAL RING 25X35X7 BTSL |
283 Kč | |
| 13 | 50230029012 LOCKING RING VSK 12 |
25 Kč | |
| 14 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 15 | 50430015044 CON-ROD REPAIR KIT |
5 618 Kč | |
| 16 | 50330207100 II PISTON I CPL. 125 II |
3 999 Kč | |
| 16 | 50430007000 I PISTON I CPL. 125 |
3 999 Kč | |
| 17 | 50330032600 TRAPEZOID RING 125 2008 |
743 Kč | |
| 18 | 50330074500 WIRE LOCK RING 15X1 |
27 Kč | |
| 98 | 00050000233 PISTON KIT SIZE I 125 SX |
3 988 Kč | |
| 98 | 00050000234 PISTON KIT SIZE II 125 SX |
3 988 Kč | |
| 99 | 00050002300 CRANKSHAFT REP. KIT 125-200 |
2 229 Kč |
