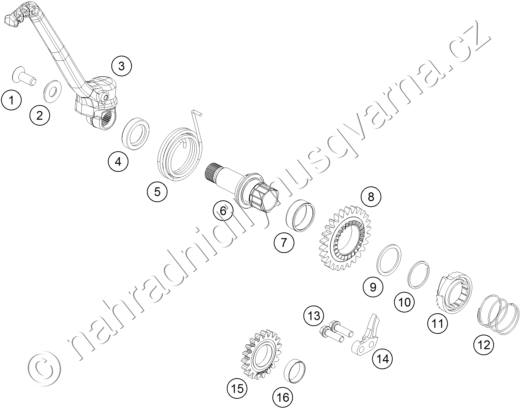

Díly pro KICK STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 |
33 Kč | |
| 2 | 54633037000 WASHER 8MM GALVANIZED |
103 Kč | |
| 3 | 50433070044 KICKSTARTER CPL. |
2 724 Kč | |
| 4 | 0760193070 SHAFT SEAL RING 19X30X7 B |
77 Kč | |
| 5 | 50433054100 KICK STARTER SPRING |
146 Kč | |
| 6 | 79233050000 KICK STARTER SHAFT |
1 572 Kč | |
| 7 | 0405252910 NEEDLE BEAR K 25X29X10 |
134 Kč | |
| 8 | 50433051026 KICK STARTER WHEEL 26T |
1 346 Kč | |
| 9 | 54833044000 STOP DISC 25X31X1,5 |
73 Kč | |
| 10 | 0417025000 CIRCLIP SW25 |
86 Kč | |
| 11 | 50433052000 KICK STARTER RATCHET |
1 346 Kč | |
| 12 | 58033028000 RATCHET GEAR SPRING 1,2 MM |
53 Kč | |
| 13 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 14 | 59033069000 BUMP PART |
379 Kč | |
| 15 | 50433053019 STARTER INTERMEDIATE GEAR 19T |
1 573 Kč | |
| 16 | 50433024050 BUSHING IDLER GEAR |
424 Kč |
