Díly pro TRANSMISSION I - MAIN SHAFT

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 50433101000
DRIVE SHAFT ASSY. NOT=12
3 577 Kč
2 0405212513
NEEDLE BEARING K21X25X13 SPLIT
374 Kč
3 50433105100
IDLER 5TH GEAR NOT=21
1 682 Kč
4 50433043000
STOP DISK
73 Kč
5 50133090000
LOCK RING 22X1,2
28 Kč
6 50433103000
SLIDING GEAR 3RD/4TH GEAR
2 588 Kč
7 0405202410
NEEDLE BEARING K20X24X10
374 Kč
8 50433106000
IDLER 6TH GEAR NOT=20
1 682 Kč
9 50433102000
FIXED GEAR 2ND GEAR NOT=15
1 538 Kč
10 50333041000
STOP DISC 17,2X26X1 B
45 Kč
11 0625160031
GROOVED BALL B. 16003 C4 J1
397 Kč
12 0625060041
BALL BEARING 6004 TNH C3
222 Kč

Další schémata

CARBURETOR CARBURETOR CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER, CYLINDER HEAD CYLINDER, CYLINDER HEAD ENGINE CASE ENGINE CASE EXHAUST CONTROL EXHAUST CONTROL IGNITION SYSTEM IGNITION SYSTEM KICK STARTER KICK STARTER REED VALVE CASE REED VALVE CASE SHIFTING MECHANISM SHIFTING MECHANISM TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT WATER PUMP WATER PUMP

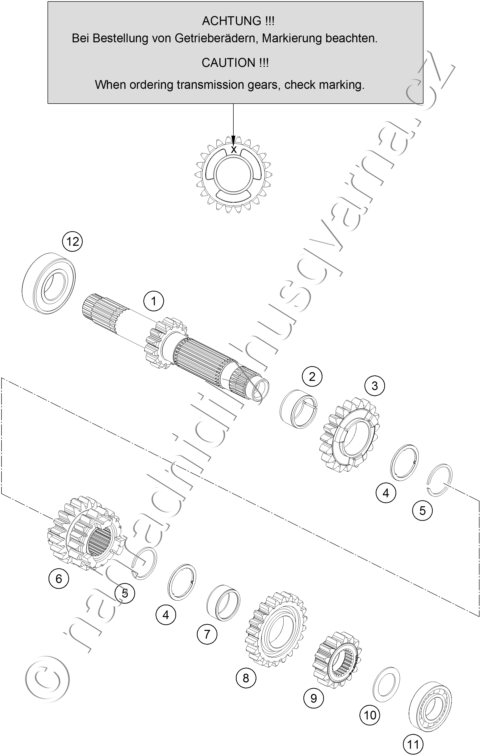

TRANSMISSION I - MAIN SHAFT

Zvětšit schéma TRANSMISSION I - MAIN SHAFT
TRANSMISSION I - MAIN SHAFT
