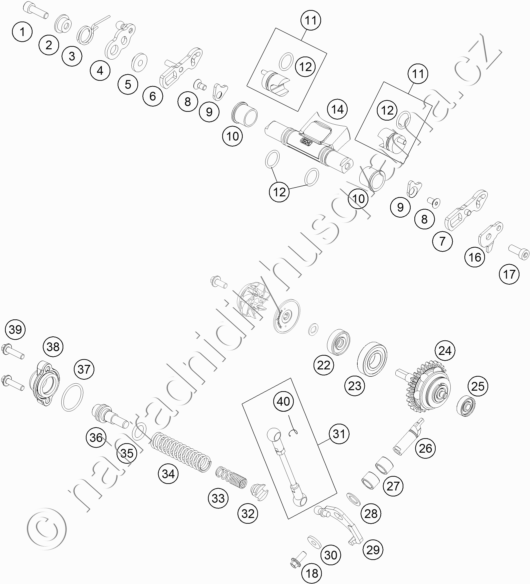

Díly pro EXHAUST CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0912060203 AH SCREW DIN0912-M 6X20 |
17 Kč | |
| 2 | 54637067000 SPRING SLEEVE |
60 Kč | |
| 3 | 54637066000 OVERLOAD SPRING |
61 Kč | |
| 4 | 54637065000 CONTROL LEVER WITH BALL TYPE |
419 Kč | |
| 5 | 54637068100 BUSHING SLEEVE |
126 Kč | |
| 6 | 50437065044 SLOTTED LEVER R/S |
358 Kč | |
| 7 | 50437064044 SLOTTED LEVER L/S |
358 Kč | |
| 8 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 9 | 50437079000 LOCK PLATE |
190 Kč | |
| 10 | 50437023000 BEARING SLEEVE F. CONTROL FLAP |
116 Kč | |
| 11 | 50437061044 CONTROLLER DRUM CPL. |
937 Kč | |
| 12 | 0770140201 O-RING 14X2 FPM 75SH |
31 Kč | |
| 14 | 50437020000 CONTROL FLAP |
1 339 Kč | |
| 16 | 50437085000 STOP PLATE |
129 Kč | |
| 17 | 0912060163 AH SCREW DIN0912-M 6X16 |
17 Kč | |
| 18 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 |
29 Kč | |
| 22 | 0760082472 SHAFT SEAL RING 8X24X7 A DUO |
61 Kč | |
| 23 | 0625160020 BALL BEARING 16002 C3 |
284 Kč | |
| 24 | 50437050044 CENTRIFUGAL UNIT |
4 071 Kč | |
| 25 | 54637098100 BALL BEARING 626LLBC3/5K |
190 Kč | |
| 26 | 50437057100 ADJUSTING LEVER 125/150 2016 |
761 Kč | |
| 27 | 0618101410 NEEDLE SLEEVE HK 1010 10X14X10 |
82 Kč | |
| 28 | 0988101610 SHIM WASHER DIN988 10X16X1 |
15 Kč | |
| 29 | 47237056000 ANGLE LEVER |
767 Kč | |
| 30 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 31 | 50437095044 CONNECTING ROD CPL. |
324 Kč | |
| 32 | 54637071200 SPRING INSERT |
214 Kč | |
| 33 | 54637072300 AUXILIARY SPRING MID., YELLOW |
41 Kč | |
| 34 | 54837069000 ADJUST. SPRING 2003 |
63 Kč | |
| 35 | 0770021120 O-RING 12,37X2,62 NBR70 |
21 Kč | |
| 36 | 54837075000 SPRING GUIDE 250/300 |
255 Kč | |
| 37 | 0770240020 O-RING 24,00X2,00 NBR70 |
18 Kč | |
| 38 | 54637070100 COVER LID 250-380\'98 |
265 Kč | |
| 39 | 0014050203 HH COLLAR SCREW M 5X20 WS=6 |
55 Kč | |
| 40 | 50237195055 SECURING DIN-71805-S-8 |
29 Kč |
