Díly pro CYLINDER, CYLINDER HEAD

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 50430038000
CYLINDER + PISTON CPL. 125
19 130 Kč
2 58336020090
VACUUM CONNECTION M 6X1
116 Kč
3 0770890200
O-RING 89X2 NBR 70 SH
37 Kč
4 0770600200
O-RING 60X2 FPM 75SH
65 Kč
5 50430060000
COMBUSTION CHAMBER INLAY
815 Kč
6 50430106000
CYLINDER HEAD
1 633 Kč
7 0603061001
CU-SEAL RING DIN7603-6X10X1
20 Kč
8 0025060106
HH COLLAR SCREW M6X10 TX30
28 Kč
9 07702300251
O-RING 23,00X2,5 NBR 70 SH
17 Kč
10 0603070121
CU-SEAL RING DIN7603- 7,3X12X1
23 Kč
11 50430079000
CYLINDER HEAD SCREW
77 Kč
12 50330045000
HH COLLAR NUT M 8 WS=12
23 Kč
13 0835080326
STUD DIN 835 M8X32
52 Kč
14 50430035015
CYLINDER BASE GASKET 0.15MM
129 Kč
14 50430035020
CYLINDER BASE GASKET 0.20MM
129 Kč
14 50430035025
CYLINDER BASE GASKET 0.25MM
129 Kč
14 50430035040
CYLINDER BASE GASKET 0.40MM
129 Kč
14 50430035050
CYLINDER BASE GASKET 0.50MM
129 Kč
14 50430035075
CYLINDER BASE GASKET 0.75MM
129 Kč
15 0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
23 Kč
16 50437046000
GASKET CONNECTION FLANGE
167 Kč
18 51005074000
RETAINING PLATE
31 Kč
19 0025060256
HH COLLAR SCREW M6X25 TX30
29 Kč
20 0913060203
THREAD PIN DIN0913-M 6X20
26 Kč
22 77336088106
COLLAR NUT M6X1 SW8
231 Kč
23 5043700700033
EXHAUST CONTROL COVER R/S
390 Kč
24 50437008000
GASKET EXH. CONTROL COVER R/S
126 Kč
25 50437006000
GASKET EXH. CONTROL COVER L/S
126 Kč
26 5043700500033
EXHAUST CONTROL COVER L/S
390 Kč
27 58605083014
SCREW M5X14 TORX 25 07
34 Kč
28 50335030001
PVC-HOSE 6X9
92 Kč
99 50430097000
CYLINDER GASKET SET 125/150 16
966 Kč

Další schémata

CARBURETOR CARBURETOR CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER, CYLINDER HEAD CYLINDER, CYLINDER HEAD ENGINE CASE ENGINE CASE EXHAUST CONTROL EXHAUST CONTROL IGNITION SYSTEM IGNITION SYSTEM KICK STARTER KICK STARTER REED VALVE CASE REED VALVE CASE SHIFTING MECHANISM SHIFTING MECHANISM TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT WATER PUMP WATER PUMP

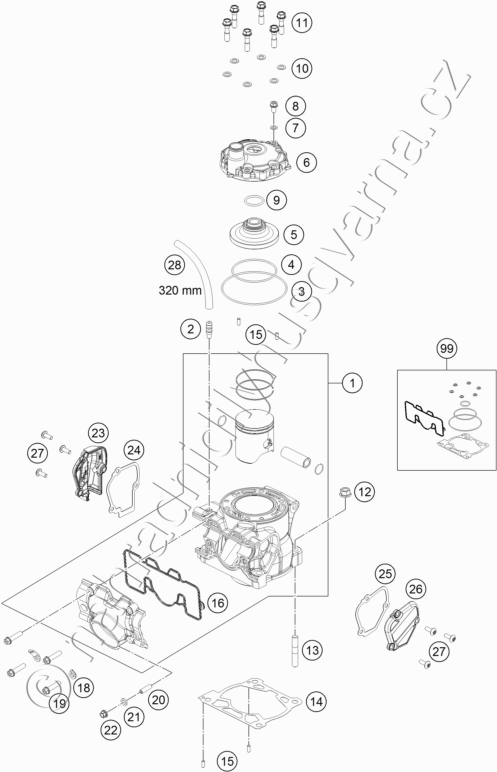

CYLINDER, CYLINDER HEAD

Zvětšit schéma CYLINDER, CYLINDER HEAD
CYLINDER, CYLINDER HEAD
