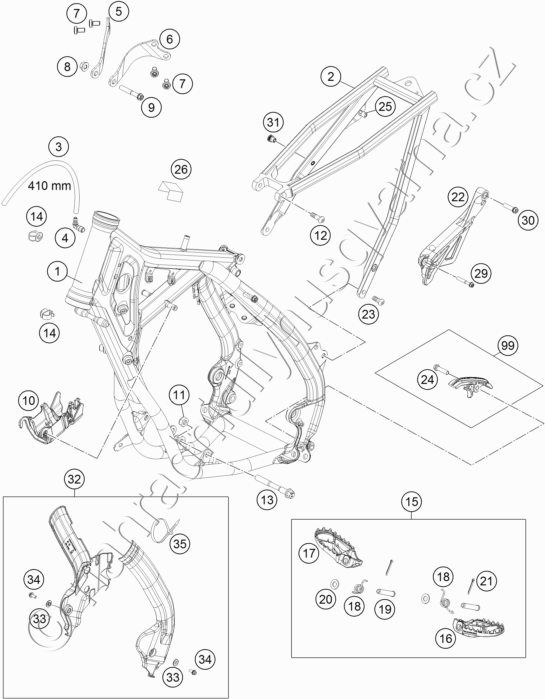

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 4720300100028 FRAME \"472R3\" WHITE |
32 563 Kč | |
| 2 | 47203002000 SUBFRAME |
7 089 Kč | |
| 3 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 4 | 51030022000 ANGLE PIECE 90 DEGREE M10X1 |
43 Kč | |
| 5 | 47203014000 MOTORSTREBE RECHTS |
478 Kč | |
| 6 | 47203013000 MOTORBRACKET LEFT |
478 Kč | |
| 7 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 |
23 Kč | |
| 8 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 9 | 0025080506 HH COLLAR SCREW M8X50 TX40 |
33 Kč | |
| 10 | 47211095000 CABLE COMPARTMENT |
318 Kč | |
| 11 | 54310086100 SELF LOCKING NUT M10 CU WS=14 |
20 Kč | |
| 12 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 |
33 Kč | |
| 13 | 47003013000 ENGINE BRACKET SCREW 85 SX |
154 Kč | |
| 14 | 57013072100 WIRING HOLDER 16MM |
23 Kč | |
| 15 | 79003040033 FOOT PEGS SET CPL. 2016 |
1 440 Kč | |
| 16 | 79003040000 FOOTREST L/S 2016 |
837 Kč | |
| 17 | 79003041000 FOOTREST R/S 2016 |
837 Kč | |
| 18 | 79003044000 FOOTREST SPRING R/S 2016 |
33 Kč | |
| 19 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 20 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 21 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 22 | 47203096000 SPROCKET COVER 85 |
478 Kč | |
| 23 | 79003003000 SPECIAL SCREW M8X18 TORX45 SS |
25 Kč | |
| 24 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 25 | 77303139000 BLIND RIVET NUT EM6-60LF/HX |
53 Kč | |
| 26 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 |
39 Kč | |
| 29 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 30 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 31 | 79003002080 |
Na dotaz | 2 |
| 32 | 4720309400033 FRAME PROTECTION STICKER SET |
764 Kč | |
| 33 | 54803092060 BUSH F. FRAME PROTECTION 03 |
73 Kč | |
| 34 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 |
29 Kč | |
| 35 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 99 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 |
126 Kč |
