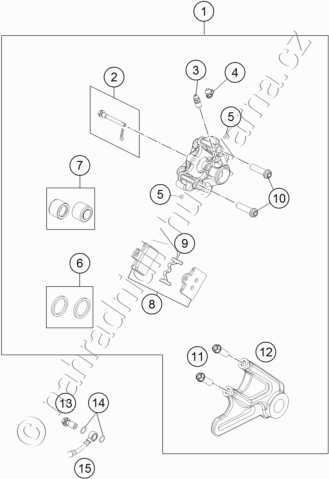

Díly pro REAR BRAKE CALIPER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47213080000 CALIPER REAR CPL. 85 TC/SX 18 |
9 535 Kč | |
| 2 | 47013092000 SPECIAL SCREW WITH SPLINT PIN |
621 Kč | |
| 3 | 47013085000 BLEEDER SCREW M8X1 |
178 Kč | |
| 4 | 47013021000 CAP FOR BLEEDER SCREW |
116 Kč | |
| 5 | 07700257178 O-RING 2,57X1,78 |
45 Kč | |
| 6 | 47213081000 REPAIR KIT SEAL RING 22MM |
478 Kč | |
| 7 | 47213083000 REPAIR KIT BRAKEPISTON 22MM |
1 280 Kč | |
| 8 | 47013090300 BRAKE PADS REAR 85 SX 2011 |
1 113 Kč | |
| 9 | 47013018000 RETAINING SPRING 85 SX 2011 |
125 Kč | |
| 10 | 47013084000 SPECIAL SCREW CALIPER M8X30 |
150 Kč | |
| 11 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 12 | 47013075000 BRAKE CALIPER SUPPORT CPL. |
1 520 Kč | |
| 13 | 47013025000 HOLLOW SCREW BRAKE CYLINDER 03 |
207 Kč | |
| 14 | 0770080019 O-RING 8,00X1,00 FORMULA |
45 Kč | |
| 15 | 47013070000 BRAKE HOSE REAR 85 SX 03 |
1 979 Kč |
