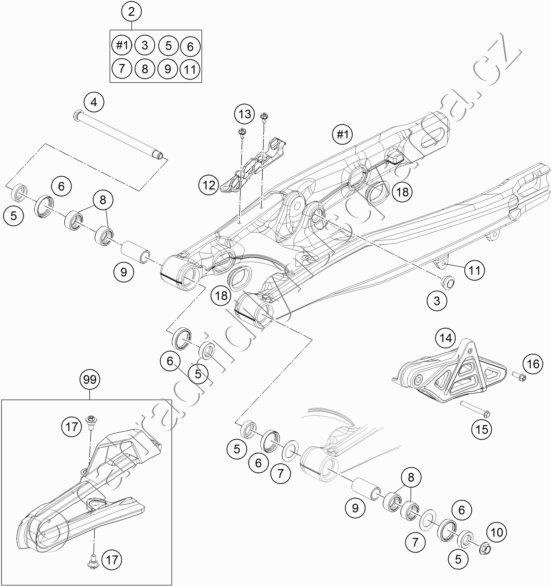

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 47104030144 SWING ARM CPL. 85 SX/TC 18 |
17 561 Kč | |
| 3 | 50180105 THREADED BUSH M12 PDS |
169 Kč | |
| 4 | 47104037000 SWING ARM BOLT 85 SX |
1 150 Kč | |
| 5 | 54603090000 BUCKET F.SHAFTSEALRING 15X25X9 |
103 Kč | |
| 6 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 7 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 8 | 50203097000 NEEDLE BUSH HK 2012 |
219 Kč | |
| 9 | 50203081700 BUSHING SLEEVE 15X20X38,75 |
180 Kč | |
| 10 | 77204087000 HEX NUT M14X1.5 WS17 |
55 Kč | |
| 11 | 54603055051 PRESS IN NUT M6 STEEL ZINC |
33 Kč | |
| 12 | 47113047000 BRAKE HOSE GUIDE |
86 Kč | |
| 13 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 14 | 78104070100 CHAIN GUIDE EXC |
799 Kč | |
| 15 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 16 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 17 | 83008000015 SPECIAL SCREW M6X15X3 |
42 Kč | |
| 18 | 77204041000 CLOSING COVER |
66 Kč | |
| 99 | 47104066010 CHAIN GUARD KIT 85 SX 15 |
286 Kč |
