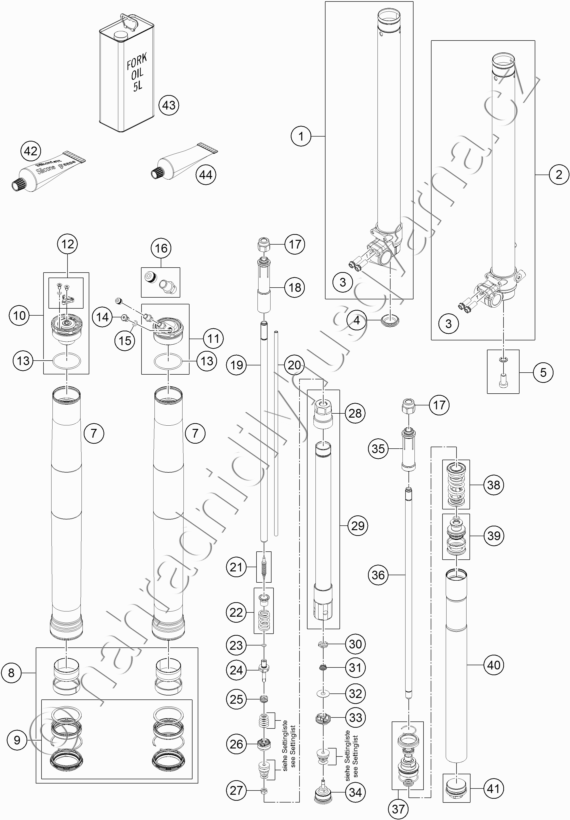

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 43570818S1 AXLE CLAMP RIGHT + TUBE 85SX CPL. |
6 090 Kč | |
| 2 | 43570817S1 AXLE CLAMP LEFT + TUBE 85SX CPL. |
6 090 Kč | |
| 3 | 0025080206 HH COLLAR SCREW M8X20 TX40 |
33 Kč | |
| 4 | 48600141 RUBBER CAP D=35MM |
42 Kč | |
| 5 | 00501020S1 AH SCREW M10X20 SET |
94 Kč | |
| 7 | 43570614E OUTER TUBE L510 D49/53 |
3 576 Kč | |
| 8 | RP10017 REVISION KIT 43MM |
2 523 Kč | |
| 9 | R516 GASKET SET 43MM HD+ RED |
1 698 Kč | |
| 10 | 43570807S SCREW CAP M46X1,5 CPL. |
1 601 Kč | |
| 11 | 43570814S SCREW CAP M46X1,5 Ă 49 CPL. |
1 601 Kč | |
| 12 | RP10016 ADJUSTER KIT REBOUND |
190 Kč | |
| 13 | 43570023 O-RING NBR 41X2 |
41 Kč | |
| 14 | 48601495 PLUG SCREW M8X1 BN44 |
227 Kč | |
| 15 | 48600044 O-RING NBR 6X1,5 |
29 Kč | |
| 16 | 48601494S VALVE M8X1 INCL. SCREW CAP |
979 Kč | |
| 17 | 43570859 COUNTERNUT M12X1 HEX22 |
318 Kč | |
| 18 | 43570856 STOP L=115 |
318 Kč | |
| 19 | 48601811 PISTON ROD D12 L 477,5MM |
1 787 Kč | |
| 20 | 48601812 EIADJUSTMENT TUBE L 445,1 D6 |
318 Kč | |
| 21 | 48600277S ADJUSTING NEEDLE CPL. |
124 Kč | |
| 22 | 48600578S SPRING REBOUND + SPRING GUIDE |
522 Kč | |
| 23 | 48600299 O-RING 6X1,2 NBR |
60 Kč | |
| 24 | 48600576 PISTON ROD REBOUND |
243 Kč | |
| 25 | 35480377 SPRING CHECK VALVE D=0,5 |
31 Kč | |
| 26 | 48600575S1 PISTON CPL. |
453 Kč | |
| 27 | 40540486 NUT M6X0,5 REBOUND |
57 Kč | |
| 28 | 43570852S |
Na dotaz | 1 |
| 29 | 48600870S3 CARTRIDGE CPL. |
1 921 Kč | |
| 30 | 48600163 CHECK VALVE NUT M6X0,5 D=2 |
127 Kč | |
| 31 | 48600202 SPRING CHECK VALVE D=0,7 |
29 Kč | |
| 32 | 48600061 CHECK VALVE 8X24X0,4 |
45 Kč | |
| 33 | 48600047S PISTON + O-RING |
324 Kč | |
| 34 | 48600586E TAP COMPRESSION CPL. |
921 Kč | |
| 35 | 43570819 STOP L=78,5 |
318 Kč | |
| 36 | 48601501 PISTON ROD D12 M12X1 M11,5X1 |
1 787 Kč | |
| 37 | 48601452S1 SCREW SLEEVE AIR CPL. |
2 941 Kč | |
| 38 | 48601820S1 REBOUND SPRING CPL. |
522 Kč | |
| 39 | 43570844S MAIN PISTON Ă 34 AER43 |
921 Kč | |
| 40 | 48601571S2 TUBE IĂ 34 L=410 AIR |
1 921 Kč | |
| 41 | 43570845S ADAPTER M35,5X0,8 M10 CPL. |
639 Kč | |
| 42 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 43 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 44 | 00062010051 CENTOPLEX 2 EP - 45G MP-GREASE |
326 Kč |
