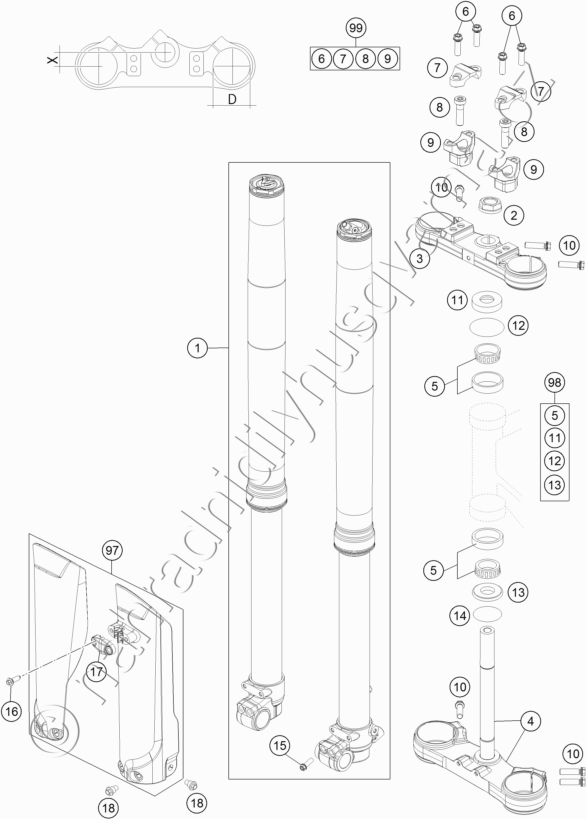

Díly pro FRONT FORK, TRIPLE CLAMP
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 43188R0401 FORK 85 SX 2018 |
39 373 Kč | |
2 | 59030029000 HH NUT M20X1,5 WS=27 RIGHT |
158 Kč | |
3 | 47101034114 TOP TRIPLE CLAMP |
3 895 Kč | |
4 | 47101032114 BOTTOM TRIPLE CLAMP CPL. |
4 892 Kč | |
5 | 49001081000 TAPERED ROLLER BEARING 32004X |
395 Kč | |
6 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
7 | 77201038000 HANDLEBAR CLAMP 28MM |
387 Kč | |
8 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 |
36 Kč | |
9 | 59401039037 HANDLEB.SUPP. D=28MM H=37MM 05 |
619 Kč | |
10 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
11 | 49001086000 COVERING CAP |
77 Kč | |
12 | 0770021300 O-RING 40,94X2,62 NBR70 |
25 Kč | |
13 | 46001086000 PROTECTION RING 20,1X39X5 |
158 Kč | |
14 | 0770360030 O-RING 36,00X3,00 NBR |
18 Kč | |
15 | 0025080206 HH COLLAR SCREW M8X20 TX40 |
33 Kč | |
16 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
17 | 77701085100DB CLAMP FOR BRAKE HOSE |
61 Kč | |
18 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
97 | 47201094000DBA FORK PROTECTIN SET TC85 18 |
959 Kč | |
98 | 00050000931 STEARING HEAD REP. KIT MINI |
940 Kč | |
99 | 00050000921 HANDLEBAR SUPPORT KIT D28/H37 |
1 942 Kč |
