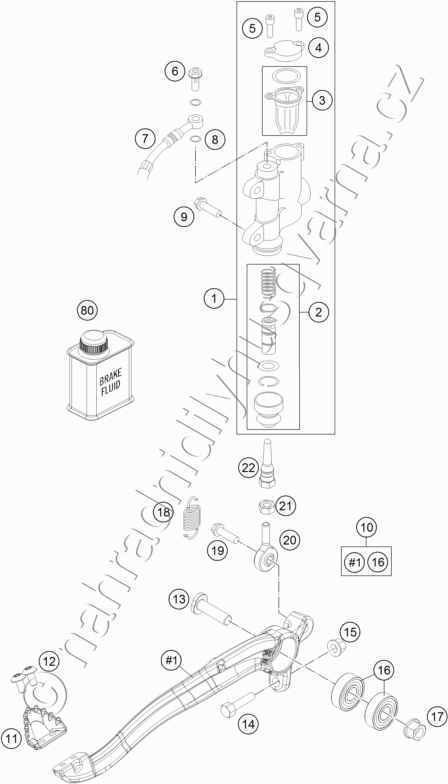

Díly pro REAR BRAKE CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 4701306030001S FOOT BRAKE CYL. REAR CPL. D=12 |
4 568 Kč | |
| 2 | 47013061100 REP. SET PISTON REAR D=12 2004 |
1 185 Kč | |
| 3 | 47013063000 GASKET CYLINDER COVER REAR 03 |
190 Kč | |
| 4 | 47013062000 CYLINDER COVER REAR 85 SX 03 |
154 Kč | |
| 5 | 0912040103 AH.SCREW DIN0912-M 4X10 |
20 Kč | |
| 6 | 47013025000 HOLLOW SCREW BRAKE CYLINDER 03 |
207 Kč | |
| 7 | 47013070000 BRAKE HOSE REAR 85 SX 03 |
1 979 Kč | |
| 8 | 0770080019 O-RING 8,00X1,00 FORMULA |
45 Kč | |
| 9 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 10 | 47213050044 FOOT BRAKE LEVER KPL. |
1 921 Kč | |
| 11 | 55413051000 STEP PLATE FOOT BRAKE LEVER |
318 Kč | |
| 12 | 58605083010 SCREW TORX M5X10 05 |
34 Kč | |
| 13 | 47213054000 SCREW FOOT BRAKE LEVER |
49 Kč | |
| 14 | 59001037000 SPECIAL SCREW M8X26 WS=10 |
53 Kč | |
| 15 | 46030045000 FLANGED NUT M8 WS10 |
87 Kč | |
| 16 | 0625060002 DEEP GROOVE BALL BEARING SKF 6000-2RS1 |
169 Kč | |
| 17 | 54630044000 COLLAR NUT M10 WS=13 |
29 Kč | |
| 18 | 79003062000 RETURN SPRING F. BRAKE LEVER |
69 Kč | |
| 19 | 0025060206S HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 20 | 54813055100 JOINT HEAD CMP6 |
626 Kč | |
| 21 | 0934060003 HEX NUT DIN 934 M6 |
17 Kč | |
| 22 | 47013056100 PRESSURE ROD 85 SX 06 |
223 Kč | |
| 80 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč |
