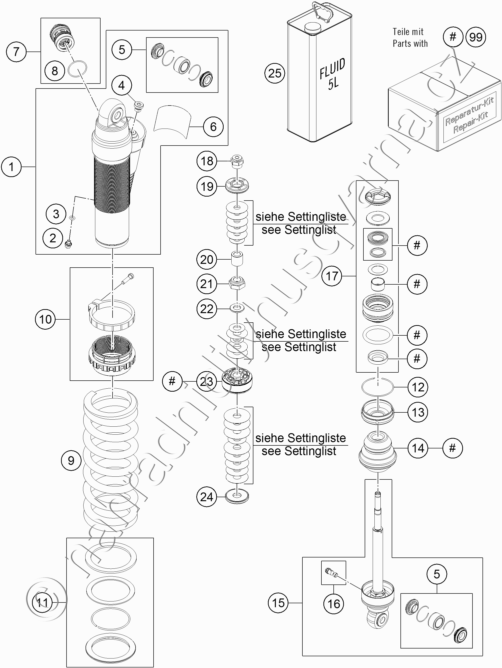

Díly pro SHOCK ABSORBER DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 46181242S3 MONOSHOCK CASE M53X1 WITH PIPE CPL. |
6 173 Kč | |
| 2 | 36120151S PLUG SCREW M5X6 CPL. |
161 Kč | |
| 3 | 46810893 O-RING NBR 5,28X1,78 |
29 Kč | |
| 4 | 50180095 BLEED PLUG R 1/8 |
95 Kč | |
| 5 | RP10011 BEARING KIT KGW D12 |
1 352 Kč | |
| 6 | 52000143 |
Na dotaz | 1 |
| 7 | 50181101S22 DCC CPL. |
3 382 Kč | |
| 8 | 50180217 O-RING 27X1,5 VITON |
41 Kč | |
| 9 | 91010201 |
Na dotaz | 0 |
| 9 | 91010080 SPRING L215MM 50N/MM INSIDE Ă 59MM |
3 382 Kč | |
| 9 | 91010161S SPRING (59) 215 40 N/MM D=9,5 |
3 382 Kč | |
| 9 | 91010240S SPRING (59) 215 35 N/MM D=9,25 |
3 382 Kč | |
| 9 | 91010271S SPRING (59) 215 30 N/MM |
4 640 Kč | |
| 10 | 46181228S SPRING SUPPORT PLASTIC 46 CPL. |
639 Kč | |
| 11 | RP10005 SPRING CUP SET PDS 17 |
1 120 Kč | |
| 12 | 46810010 CIRCLIP 49X1,5 |
39 Kč | |
| 13 | 46180338 CAP D=46 H=9,5 |
728 Kč | |
| 14 | 46181237 |
Na dotaz | 1 |
| 15 | 46181301S1 SHOCK ABSORBER BOT. CPL. |
4 334 Kč | |
| 16 | 50181094S ADJUSTING SCREW M8X0,5 CPL. |
195 Kč | |
| 17 | 46180669S ADAPTOR CPL. D=46 H=28 07 |
1 870 Kč | |
| 18 | 46181183S |
Na dotaz | 1 |
| 19 | 46181184 |
Na dotaz | 1 |
| 20 | 46181249 COMPOSITE BUSH 10X17X23 |
275 Kč | |
| 21 | 46810474 PISTON ROD NUT |
158 Kč | |
| 22 | 46811258 RING 12X24X2,5 |
233 Kč | |
| 23 | 46181153ES |
Na dotaz | 1 |
| 24 | 46181194 |
Na dotaz | 1 |
| 25 | 50180751S1 SHOCK ABSORBER FLUID 5 LT |
2 803 Kč | |
| 99 | RP10004 REVISION KIT MONOSHOCK MINI 17 |
2 523 Kč |
