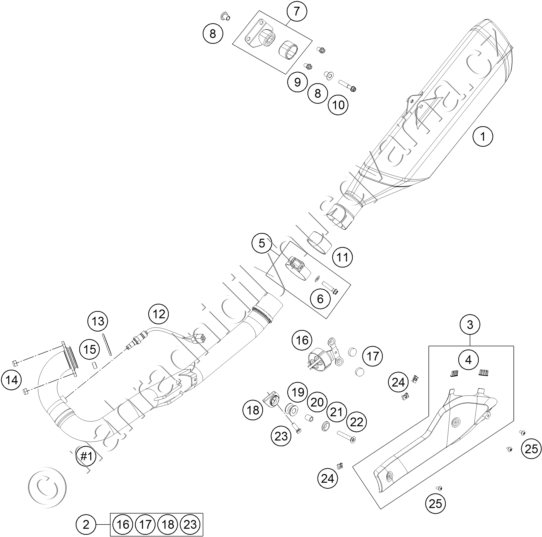

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 27005083000 SILENCER |
18 674 Kč | |
| 2 | 27005007000 EXHAUST PIPE CPL. |
14 702 Kč | |
| 3 | 27005011000 THERMAL SHIELD |
2 332 Kč | |
| 4 | 27005011011 DAMPING ELEMENT SILICON |
97 Kč | |
| 5 | 76505051000 CLAMP FOR SILENCER 57,4MM 08 |
528 Kč | |
| 6 | 0025080356 HH COLLAR SCREW M8X35 TX40 |
33 Kč | |
| 7 | 76505084100 HOLDER SILENCER CPL. |
1 216 Kč | |
| 8 | 60305069000 BUSHING |
163 Kč | |
| 9 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 10 | 0025080456 HH COLLAR SCREW M8X45 TX40 |
33 Kč | |
| 11 | 58605005000 GRAPHIT RING 55X50X25 05 |
320 Kč | |
| 12 | 75041090100 LAMBDA SENSOR |
3 560 Kč | |
| 13 | 61005005000 EXHAUST GASKET 05 |
156 Kč | |
| 14 | 51010086100 SELF-LOCKING NUT M8 CU |
55 Kč | |
| 15 | 61005009000 SPACER BUSH. 8,5X15X7,5 05 |
95 Kč | |
| 16 | 27005007025 CLAMP WELD ASSEMBLY |
685 Kč | |
| 17 | 54308042000 RUBBER BUFFER |
55 Kč | |
| 18 | 27005007027 EXHAUST SUPPORT |
815 Kč | |
| 19 | 54305068100 DAMP. COMPONENT SILICONE GREY |
122 Kč | |
| 20 | 56505069000 SPACER BUSHING 8,4X12X16 |
86 Kč | |
| 21 | 62603061000 SPECIAL WASHER 8X24 ALU H=4,2 |
113 Kč | |
| 22 | 0019080506 COUN.-SUNK SCREW M8X50 ISA10.9 |
33 Kč | |
| 23 | 0025080206 HH COLLAR SCREW M8X20 TX40 |
33 Kč | |
| 24 | 54603048600 RANGE CHANGE METAL NUT M5 INOX |
34 Kč | |
| 25 | 78105081010 SCREW TORX M5X10 |
15 Kč |
