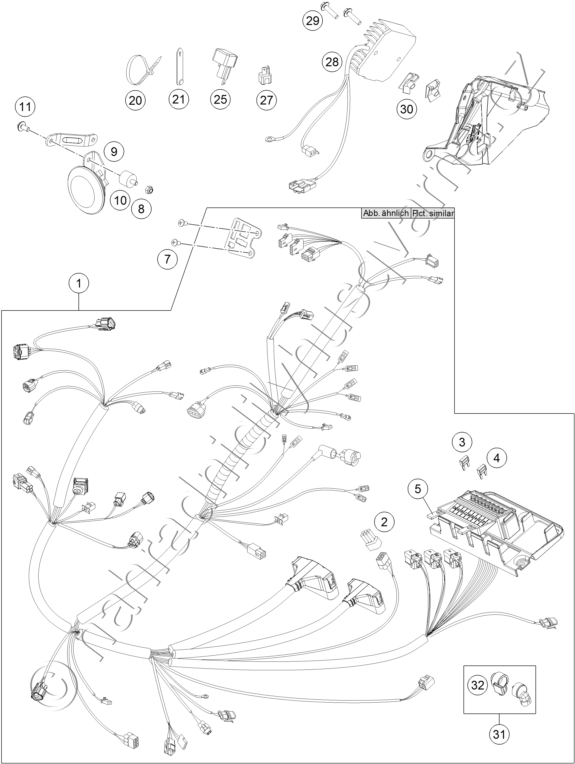

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 27011075000 MAIN WIRING HARNESS |
16 583 Kč | |
| 2 | 000700000BH SPARE CONNECTOR BH 6-PINS |
433 Kč | |
| 3 | 75011088010 FUSE 10A 07 |
69 Kč | |
| 4 | 75011088015 FUSE 15A 07 |
69 Kč | |
| 5 | 75011087050 RUBBER CASING FOR FUSE BOX |
207 Kč | |
| 7 | 0081050121 EJOT PT SCREW K50X12 |
21 Kč | |
| 8 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 9 | 76511060100 DC HORN CPL. |
671 Kč | |
| 10 | 43205062100 SILENTBLOC 20X15-M6X10-(1) |
106 Kč | |
| 11 | 0024060136 HH COLLAR SCREW M6X13 TX30 |
29 Kč | |
| 20 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 20 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 20 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 21 | 60011093045 RUBBER CABLE TIE 45MM 03 |
57 Kč | |
| 25 | 76011030000 FLASHER UNIT LED 6,25W |
440 Kč | |
| 27 | 58411096100 DIODE S3H-15 97 |
180 Kč | |
| 28 | 60011034100 VOLTAGE REGULATOR |
2 866 Kč | |
| 29 | 0024060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 30 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 31 | 76511010000 MAP-SELECT-SWITCH |
1 464 Kč | |
| 32 | 76511010050 RUBBER HOLDER F. MAP-SEL-SWIT. |
220 Kč |
