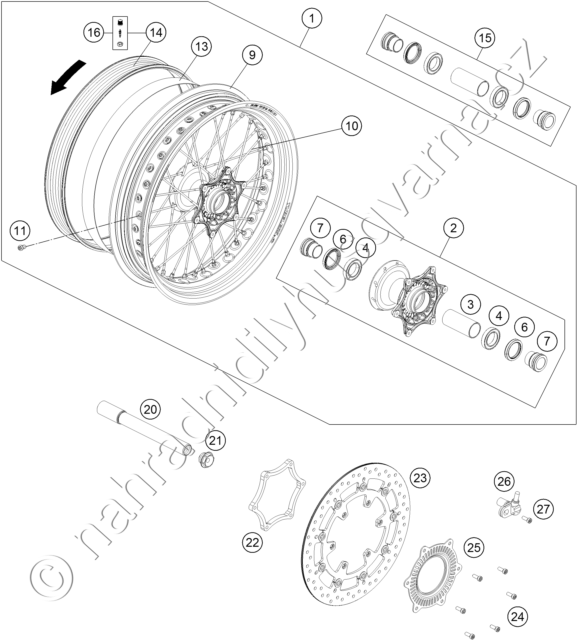

Díly pro FRONT WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7500910114430 FRONT WHEEL CPL.3,5X17\'\' TL BL. |
16 418 Kč | |
| 2 | 7500901004433 FRONT HUB CPL. |
6 664 Kč | |
| 3 | 54809011000 BEA.SPACERTUBE 35X2 L=79,4 03 |
446 Kč | |
| 4 | 0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM |
445 Kč | |
| 6 | 0760354771 SHAFT SEAL RING 35X47X7 TC |
65 Kč | |
| 7 | 75009012000 SPACER BUSHING FRONT WHEEL 07 |
552 Kč | |
| 9 | 7500937000030 RIM FRONT 3.5\'\'X17\'\' TL |
7 063 Kč | |
| 10 | 75009073170 SPOKE M4.5X170-9G 17\'\' INOX |
63 Kč | |
| 11 | 81210072100 SPOKE NIPPLE QUADRAX M4,5 |
45 Kč | |
| 13 | 75009073000 RIM TAPE 17\'\'X3.5\'\' |
464 Kč | |
| 14 | 75009177044 GASKET RUBBER 17\'\' CPL. W.VALVE |
1 113 Kč | |
| 15 | 75009015000 FRONT WHEEL REP. KIT |
1 371 Kč | |
| 16 | 81210076000 VALVE CPL. |
239 Kč | |
| 20 | 75009081000 WHEEL SPINDLE FRONT D=26MM 07 |
1 410 Kč | |
| 21 | 54809082000 SPINDLE SCREW M24X1,5 WS=27 03 |
215 Kč | |
| 22 | 75009061000 BRAKE DISC ADAPTOR 07 |
979 Kč | |
| 23 | 75009160000 BRAKE DISC FRONT 320MM |
6 410 Kč | |
| 24 | 59009062026 SPECIAL SCREW M6X26 SW=8 10.9 |
31 Kč | |
| 25 | 60142020000 SENSOR WHEEL FRONT 06 |
599 Kč | |
| 26 | 27042025000 ABS SENSOR |
3 268 Kč | |
| 27 | 014580060166S SHCS ISO 14580 M6X16 SL |
20 Kč |
