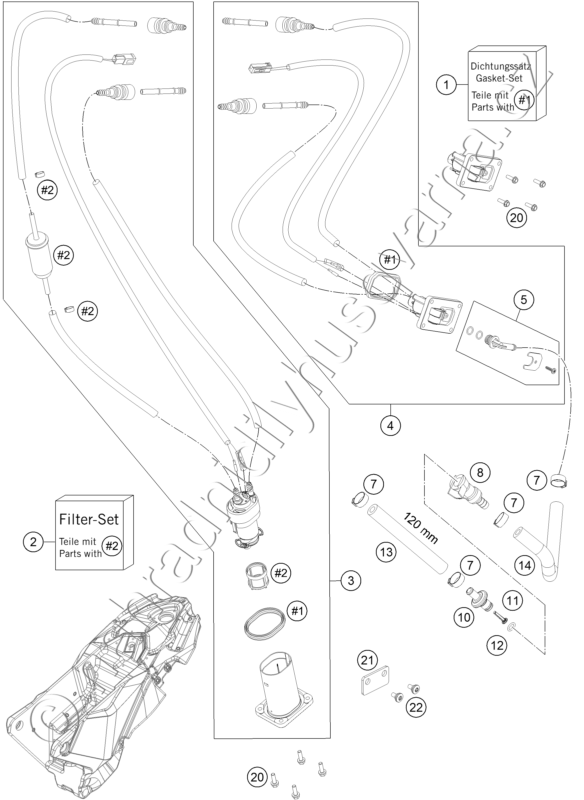

Díly pro FUEL PUMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 75007089000 SEALINGS KIT |
1 764 Kč | |
| 2 | 81207090100 FILTER KIT |
1 256 Kč | |
| 3 | 75007088211 FUEL PUMP WITH FLANGE |
9 349 Kč | |
| 4 | 75007088012 PRESSURE REGULATOR CPL. 07 |
4 690 Kč | |
| 5 | 75007092000 HYDRAULIC CONNECTOR CPL. |
1 179 Kč | |
| 7 | 00050157706 VARIABLE ONE-EAR CLAMP 15,7M |
50 Kč | |
| 8 | 5850701050030 CLUTCH CPC BLACK 05 |
1 020 Kč | |
| 10 | 77707010000 CONNECTOR FUEL PUMP |
244 Kč | |
| 11 | 78141013190 FUEL FILTER |
110 Kč | |
| 12 | 58507012000 O-RING VITON F. PLUG CPC 05 |
118 Kč | |
| 13 | 60007316120 FUEL HOSE 7,5X3,5 L=120 |
118 Kč | |
| 14 | 27007016050 FUEL HOSE THROTTLE VALVE |
586 Kč | |
| 20 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 21 | 27008047000 SIDE PANEL BRACKET |
129 Kč | |
| 22 | 69008021160 SPECIAL SCREW M5X12 |
52 Kč |
