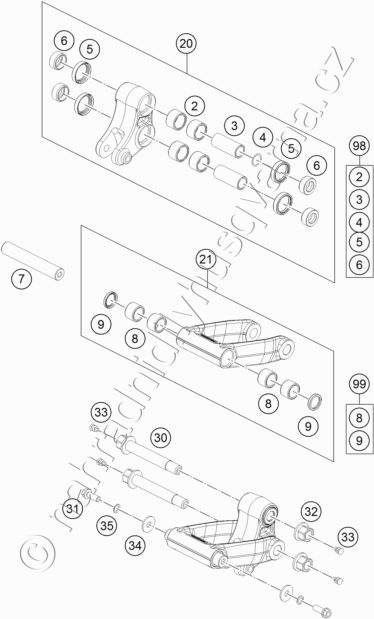

Díly pro PRO LEVER LINKING
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 54603097000 NEEDLE BUSH HK 2016 |
221 Kč | |
| 3 | 54603081000 BUSHING SLEEVE 15 X 20 X 48 |
406 Kč | |
| 4 | 54603090010 STEEL WASHER 15,2X19X0,1 |
45 Kč | |
| 4 | 54603090020 STEEL WASHER 15,2X19X0,2 |
45 Kč | |
| 4 | 54603090030 STEEL WASHER 15,2X19X0,3 |
45 Kč | |
| 5 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 6 | 76504089000 BUCKET FOR SHAFT SEAL RING |
89 Kč | |
| 7 | 76504084000 PULL ROD ANCHOR BOLT |
1 334 Kč | |
| 8 | 56503195100 NEEDLE BEARING HK 1816 |
121 Kč | |
| 9 | 0760182442 SHAFT SEAL RING 18X24X4 |
66 Kč | |
| 20 | 2700408004401 TRIANGLE LEVER CPL. |
6 064 Kč | |
| 21 | 2700408304401 PULL ROD CPL. |
4 592 Kč | |
| 30 | 76504082044 BOLT CPL. M14X1,5 |
512 Kč | |
| 31 | 0025080166S HH COLLAR SCREW M8X16 TX40 SL |
33 Kč | |
| 32 | 54603015000 SELF LOCKING NUT M14X1,5 WS=19 |
71 Kč | |
| 33 | 54403135000 PLASTIC CAP SFL10 |
29 Kč | |
| 34 | 0021080003 WASHER DIN9021-A 8,4 |
17 Kč | |
| 35 | 36003014000 LOCK WASHER 8MM |
15 Kč | |
| 98 | 76504080100 TRIANGLE LEVER REP. KIT REAR |
1 161 Kč | |
| 99 | 76504083010 PULL ROD REP. KIT 690 END/SMC |
555 Kč |
