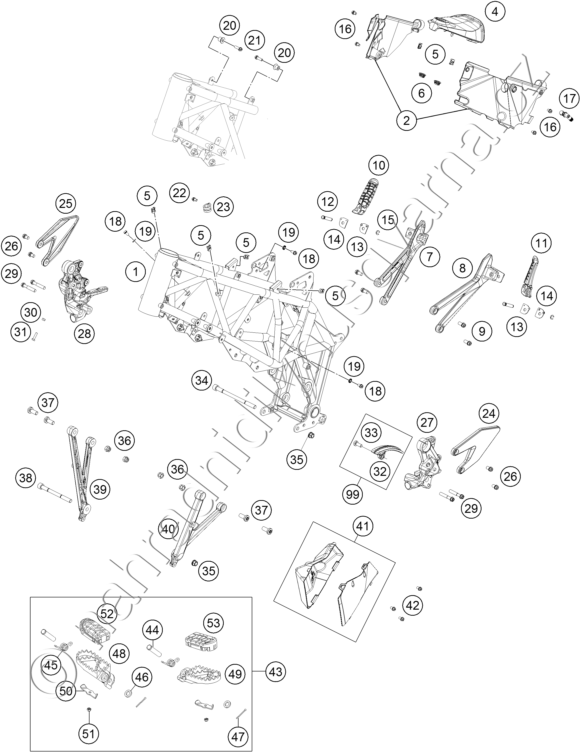

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2700300100028 FRAME \'\'270PA\'\' WHITE |
39 760 Kč | |
| 2 | 27003094000 FRAME GUARD-SET |
554 Kč | |
| 4 | 27003084000 IGNITION LOCK COVER |
488 Kč | |
| 5 | 69008021080 CLIP NUT M5 |
47 Kč | |
| 6 | 47106003160 QUICK RELEASE RUBBER GROMMET |
57 Kč | |
| 7 | 7650304900001 FOOT REST BRACKET REAR R/S |
2 779 Kč | |
| 8 | 7650304800001 FOOT REST BRACKET REAR L/S |
2 779 Kč | |
| 9 | 0025080166 HH COLLAR SCREW M8X16 TX40 |
33 Kč | |
| 10 | 60003051000 FOOTREST CPL. R/S REAR 03 |
1 025 Kč | |
| 11 | 60003050000 FOOTREST CPL. L/S REAR 03 |
1 025 Kč | |
| 12 | 60003044000 BOLT FOR FOOTREST REAR 03 |
111 Kč | |
| 13 | 60003152000 ENGAGE PANEL FOOTREST L/S 03 |
73 Kč | |
| 14 | 60003052000 ENGAGE PANEL FOOTREST R/S 03 |
73 Kč | |
| 15 | 0799060003 RETAINING WASHER DIN 6799 - 6 |
17 Kč | |
| 16 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 17 | 60038082000 ANGLE CONNECTOR LC8 03 |
356 Kč | |
| 18 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 19 | 58411098100 CONTACT WASHER M6 VSV-K6 |
23 Kč | |
| 20 | 77307026000 TANK BUSHING 07 |
52 Kč | |
| 21 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 22 | 58605083014 SCREW M5X14 TORX 25 07 |
34 Kč | |
| 23 | 49007439000 CLAMP RSGU 15/12 |
69 Kč | |
| 24 | 27003138050 HEEL PROTECTOR LS |
195 Kč | |
| 25 | 27003139050 HEEL PROTECTOR RS |
195 Kč | |
| 26 | 0025080126 HH COLLAR SCREW M8X12 TX40 |
33 Kč | |
| 27 | 7650303804401 FOOT REST BRACKET L/S |
4 185 Kč | |
| 28 | 7650303924401 FOOTREST BRACKET RIGHT |
4 185 Kč | |
| 29 | 0025080456 HH COLLAR SCREW M8X45 TX40 |
33 Kč | |
| 30 | 0934050003 HEXAGON NUT DIN0934-M 5 |
20 Kč | |
| 31 | 0933050203 HH SCREW DIN933 M5x20 |
29 Kč | |
| 32 | 76504067000 CHAIN SLID. GUARD 08 |
122 Kč | |
| 33 | 0035080206S SHCS M8X20 TX45 |
52 Kč | |
| 34 | 75003014000 SCREW |
145 Kč | |
| 35 | 54630044000 COLLAR NUT M10 WS=13 |
29 Kč | |
| 36 | 54310086100 SELF LOCKING NUT M10 CU WS=14 |
20 Kč | |
| 37 | 0035100249 SHCS M10X24 TX45 |
36 Kč | |
| 38 | 75003015000 SPECIAL SCREW M10X115 ISK8 07 |
140 Kč | |
| 39 | 7650300600033 ENGINE SUPPORT R/S BLACK |
1 714 Kč | |
| 40 | 7650300500033 ENGINE SUPPORT L/S BLACK |
1 714 Kč | |
| 41 | 27012061100 TOOL BOX |
324 Kč | |
| 42 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 43 | 60003040133 FOOTPEG LS+RS CPL. |
2 646 Kč | |
| 44 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 45 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
| 46 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 47 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 48 | 78003041050 FOOTREST R/S 08 |
858 Kč | |
| 49 | 78003040050 FOOTREST L/S 08 |
858 Kč | |
| 50 | 60003044010 CLOSING PANEL FRONT L/S R/S 03 |
130 Kč | |
| 51 | 0985050003 SELF LOCKING NUT DIN0985-M 5 |
21 Kč | |
| 52 | 60003041010 FOOTREST RUBBER FRONT R/S 03 |
295 Kč | |
| 53 | 60003040010 FOOTREST RUBBER FRONT L/S 03 |
295 Kč | |
| 99 | 76504067010 CHAIN SLIDING BELOW 08-13 |
148 Kč |
