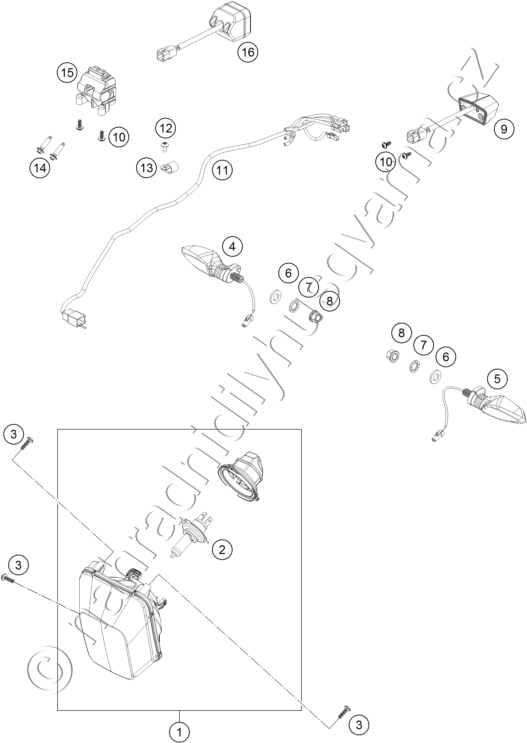

Díly pro LIGHTING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 27014001100 MAIN HEAD LIGHT |
3 220 Kč | |
| 2 | 57111038000 BULB H4 12V 60/55W (P43T) |
346 Kč | |
| 3 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 4 | 60314026000 TURN SIGNAL FRONT RIGHT/REAR LEFT |
998 Kč | |
| 5 | 60314025000 TURN SIGNAL FRONT LEFT/REAR RIGHT |
998 Kč | |
| 6 | 0433100003 WASHER 18x10,5x1,6 |
4 Kč | |
| 7 | 0797100003 LOCK WASHER DIN6797-J10,5 ZI |
17 Kč | |
| 8 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 9 | 60314047000 LICENSE PLATE LIGHTING |
653 Kč | |
| 10 | 0081050121 EJOT PT SCREW K50X12 |
21 Kč | |
| 11 | 27011076000 WIRING HARNESS REAR |
1 025 Kč | |
| 12 | 78105081010 SCREW TORX M5X10 |
15 Kč | |
| 13 | 57013070000 PVC-CLAMP 7/16\'\' HEYCO 3377 |
29 Kč | |
| 14 | 0017060255 EJOT PT SCREW K60X25-Z SW6 |
17 Kč | |
| 15 | 27014046000 REAR LIGHT BRACKET |
129 Kč | |
| 16 | 27014040000 REAR LIGHT ECE |
2 404 Kč |
