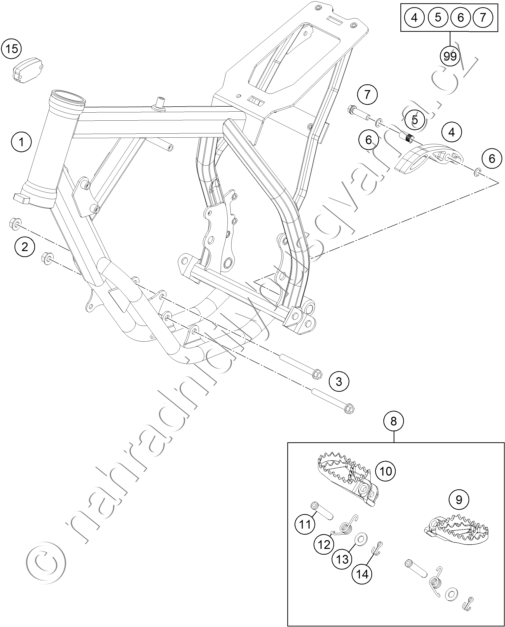

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 4530300100028 FRAME \"453P3\" WHITE |
21 762 Kč | |
| 2 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 3 | 0025080656 HH COLLAR SCREW M8X65 TX40 |
77 Kč | |
| 4 | 51103053000 CHAIN SLIDING PIECE BELOW \'97 |
260 Kč | |
| 5 | 51103053051 BUSHING 8,2X10X20 |
79 Kč | |
| 6 | 36003014000 LOCK WASHER 8MM |
15 Kč | |
| 7 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 8 | 47103040033 FOOTREST CPL. 14 |
1 822 Kč | |
| 9 | 47103040000 FOOTREST L/S |
666 Kč | |
| 10 | 47103041000 FOOTREST R/S |
666 Kč | |
| 11 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 12 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
| 13 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 14 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 15 | 78112920000 HOUR METER KTM |
1 710 Kč | |
| 99 | 51103053110 CHAIN SLIDING KIT BELOW MINI |
260 Kč |
