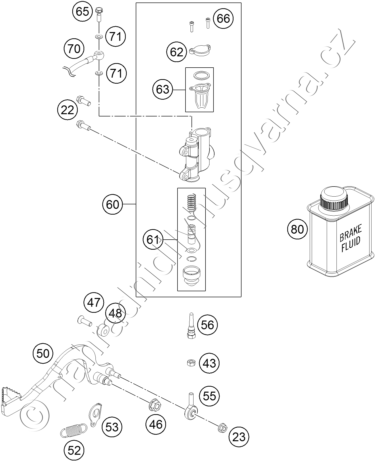

Díly pro REAR BRAKE CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 22 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 23 | 56509064100 SELF LOCKING NUT M6 10.9 |
21 Kč | |
| 43 | 0934060003 HEX NUT DIN 934 M6 |
17 Kč | |
| 46 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 47 | 0991060202 FLAT HEAD DIN7991-M 6X20 |
20 Kč | |
| 48 | 45203063000 BRAKE LEVER STOP |
610 Kč | |
| 50 | 45213050000 FOOT BRAKE LEVER |
1 187 Kč | |
| 52 | 54603062100 RETURN SPRING FOR BRAKE LEVER |
69 Kč | |
| 53 | 45213053000 LOCK WASHER 50 SX |
108 Kč | |
| 55 | 46213055000 SWIVEL HEAD KA6 INNOX |
905 Kč | |
| 56 | 46213056000 PUSH ROD |
195 Kč | |
| 60 | 46113060000 REAR BRAKE CYL. 50+65 04 |
2 805 Kč | |
| 61 | 47013061000 REP. SET PISTON REAR D=11 2003 |
595 Kč | |
| 62 | 47013062000 CYLINDER COVER REAR 85 SX 03 |
154 Kč | |
| 63 | 47013063000 GASKET CYLINDER COVER REAR 03 |
190 Kč | |
| 65 | 46113325000 HOLLOW SCREW M6 |
312 Kč | |
| 66 | 0912040103 AH.SCREW DIN0912-M 4X10 |
20 Kč | |
| 70 | 45113170000 BRAKE HOSE REAR 50 LC 04 |
1 113 Kč | |
| 71 | 0770060019 O-RING 6,00X1,00 FORMULA |
45 Kč | |
| 80 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč |
