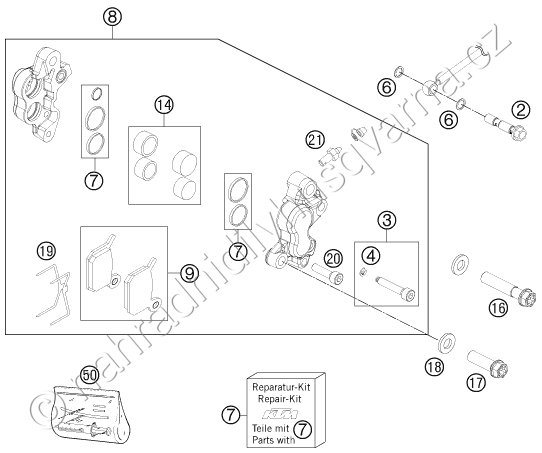

Díly pro FRONT BRAKE CALIPER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 45113025000 HOLLOW SCREW M6X34 50 LC 2002 |
236 Kč | |
| 3 | 45113125000 AH SCREW+CIRCLIP LC 50 02 |
241 Kč | |
| 4 | 0799025000 TAB WASHER DIN6799 RS2,5 |
61 Kč | |
| 6 | 0770060019 O-RING 6,00X1,00 FORMULA |
45 Kč | |
| 7 | 45113019000 REP.KIT SEAL RING 50LC 2002 |
441 Kč | |
| 8 | 45113015000 BRAKE CALIPER CPL.FR. 50 LC 02 |
5 383 Kč | |
| 9 | 45113030000 BRAKE PAD SET 50 LC 2002 |
977 Kč | |
| 14 | 45113019050 REPAIR KIT BRAKEPISTON |
425 Kč | |
| 16 | 0025080606 HH COLLAR SCREW M8x60 TX40 |
33 Kč | |
| 17 | 0025080406 HH COLLAR SCREW M8X40 TX40 |
33 Kč | |
| 18 | 0125080003 WASHER DIN 125 A -8.4 |
10 Kč | |
| 19 | 45113018000 RETAINING SPRING 50 LC |
331 Kč | |
| 20 | 0912050203 AH SCREW DIN0912-M 5X20 |
36 Kč | |
| 21 | 45113020000 BREATHER SCREW 50 2002 |
178 Kč | |
| 50 | 45119050000 BLEEDER INJECTION-SET 50-65 |
693 Kč |
