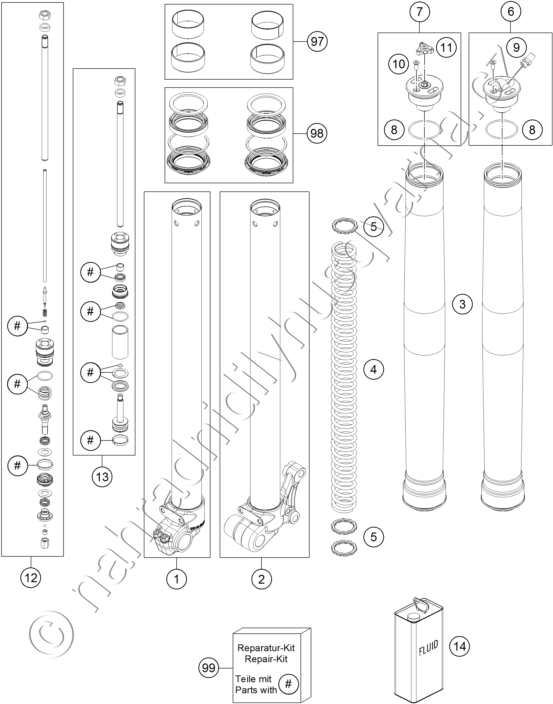

Díly pro FRONT FORK DISASSEMBLED
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 35480455S3 AXLE CLAMP R/S CPL. W. TUBE |
3 738 Kč | |
2 | 35480456S2 AXLE CLAMP L/S CPL. W. TUBE |
3 738 Kč | |
3 | 35480564 OUTER TUBE L=465 |
2 590 Kč | |
4 | 95010051S SPRING 2.0N/MM SET D=3.1MM |
3 382 Kč | |
5 | 35480497 WASHER 22X30X2.5 |
44 Kč | |
6 | 35480548S SCREW CAP M38X1,5 AIR CPL. |
1 280 Kč | |
7 | 35480507S1 SCREW CAP M38X1,5 AIR REBOUND |
1 280 Kč | |
8 | 46180581 O-RING 35X1.5 NBR70 |
20 Kč | |
9 | 48601494S VALVE M8X1 INCL. SCREW CAP |
979 Kč | |
10 | 600003 COUNTER SUNK SCREW M4X10 TORX |
26 Kč | |
11 | 48601118S ADJUSTER REB. RED CPL. |
68 Kč | |
12 | 35480551S2 PISTON ROD SX 50 CPL. RIGHT |
6 354 Kč | |
13 | 35480551S3 PISTON ROD SX 50 CPL. LEFT |
6 354 Kč | |
14 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
97 | RP10006 BUSHING KIT 35MM |
640 Kč | |
98 | RP10007 GASKET KIT 35MM RED |
1 812 Kč | |
99 | RP10008 REPAIR KIT 50+65SX AIR 2017 |
631 Kč |
