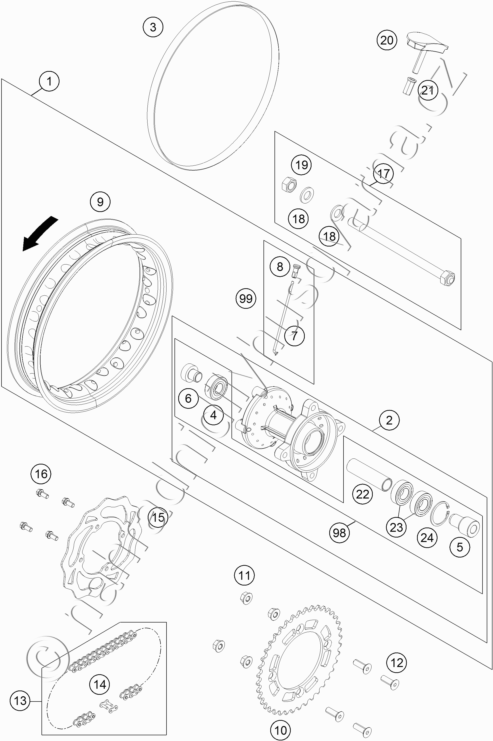

Díly pro REAR WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 45210001544 REAR WHEEL 50SX/MINI 2015 |
10 221 Kč | |
| 2 | 45210010144 REAR WHEEL HUB CPL. 50SX 2015 |
4 402 Kč | |
| 3 | 45009073000 RIM BAND 10\'\' 22MM |
219 Kč | |
| 4 | 0625062028 BALL BEARING 6202-2RSH/C3 |
195 Kč | |
| 5 | 45210013100 SPACER BUSHING LEFT 2015 |
363 Kč | |
| 6 | 45210014000 SPACER BUSHING REAR R/S |
363 Kč | |
| 7 | 45210071101 SPOKE 3X101 C.113° |
33 Kč | |
| 8 | 46210072000 SPOKE NIPPLE ALU |
29 Kč | |
| 9 | 4521007010030 REAR RIM 10\'\'X1.6 BLK. 2012 |
3 452 Kč | |
| 10 | 45210151038 SPROCKET 38-T 50SX ´13 |
1 152 Kč | |
| 10 | 45210151039 SPROCKET 39-T 50SX ´13 |
1 152 Kč | |
| 10 | 45210151040 SPROCKET 40-T 50SX ´13 |
1 152 Kč | |
| 10 | 45210151041 SPROCKET 41-T 50SX ´13 |
1 152 Kč | |
| 10 | 45210151042 SPROCKET 42-T 50SX ´13 |
1 152 Kč | |
| 11 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 12 | 0991080253 FLAT HEAD SCREW DIN7991-M 8X25 |
31 Kč | |
| 13 | 45110265104 RACING CHAIN 1/2X3/16\'\' 50 SX |
764 Kč | |
| 14 | 45110266000 CONNECTING LINK 1/2X3/16\'\' 90RS |
77 Kč | |
| 15 | 45209060000 BRAKE DISC FRONT JUN/SEN 09 |
1 461 Kč | |
| 16 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 |
31 Kč | |
| 17 | 46010085044 AXLE CPL. 207MM M12X1 |
648 Kč | |
| 18 | 0125120003 FLAT WASHER DIN0125-A13 |
17 Kč | |
| 19 | 0934120103 HEXAGON NUT DIN0934-M12X1 |
23 Kč | |
| 20 | 45110090000 RIM LOCK CPL. 2004 |
627 Kč | |
| 21 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč | |
| 22 | 45210011100 BEARING DISTANCE TUBE 2015 |
453 Kč | |
| 23 | 0625060037 GR.BALL BEAR. 6003-2RSH/C3HMTF |
391 Kč | |
| 24 | 0472035150 CIRCLIP DIN0472-35X1,5 |
39 Kč | |
| 98 | 45210015100 REAR WHEEL REP. KIT 50 SX 15 |
1 469 Kč | |
| 99 | 00050000969 SPOKE KIT REAR 10\'\' \'14 |
1 381 Kč |
