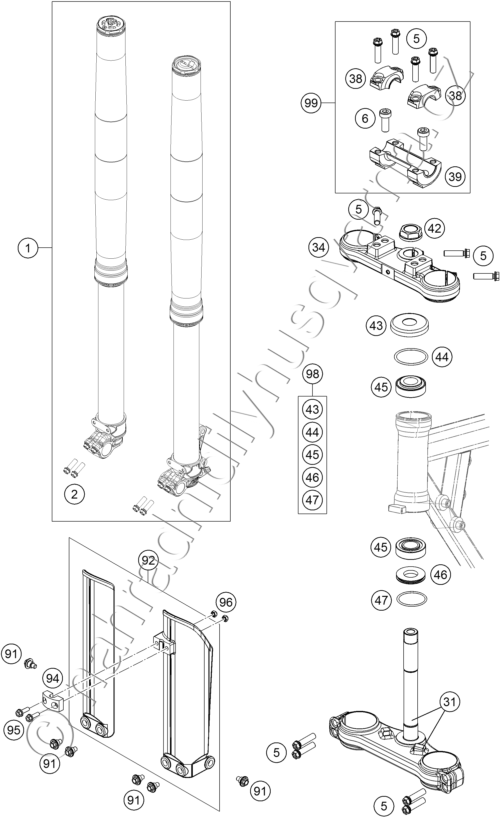

Díly pro FRONT FORK, TRIPLE CLAMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 07186Q0201 FORK 50SX 2017 |
19 996 Kč | |
| 2 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 5 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 6 | 0032100256S AH-COLLAR SCREW M10X25 ISA45 |
36 Kč | |
| 31 | 45201032022 BOT. TRIPLE CLAMP CPL. |
3 895 Kč | |
| 34 | 45201034022 TOP TRIPLE CLAMP |
2 716 Kč | |
| 38 | 50301038000 HANDLEBAR CLAMP D=22MM 2001 |
387 Kč | |
| 39 | 45201039000 HANDLEBAR SUPPORT 50SX D=22MM |
1 198 Kč | |
| 42 | 59030029000 HH NUT M20X1,5 WS=27 RIGHT |
158 Kč | |
| 43 | 49001086000 COVERING CAP |
77 Kč | |
| 44 | 0770021300 O-RING 40,94X2,62 NBR70 |
25 Kč | |
| 45 | 49001081000 TAPERED ROLLER BEARING 32004X |
395 Kč | |
| 46 | 46001086000 PROTECTION RING 20,1X39X5 |
158 Kč | |
| 47 | 0770360030 O-RING 36,00X3,00 NBR |
18 Kč | |
| 91 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 92 | 46101094000HA FORK PROTECTION SET |
456 Kč | |
| 94 | 54601085000HA BRAKE HOSE CLAMP 17 |
113 Kč | |
| 95 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 96 | 0985050003 SELF LOCKING NUT DIN0985-M 5 |
21 Kč | |
| 98 | 00050000931 STEARING HEAD REP. KIT MINI |
940 Kč | |
| 99 | 00050000925 HANDLEBAR SUPPORT KIT 50SX \'12 |
1 942 Kč |
