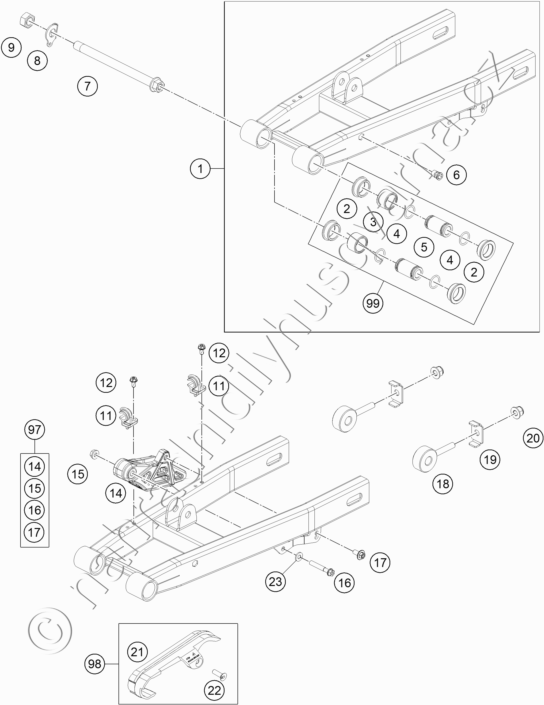

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 4530403004491 SWING ARM CPL. 50 SX 2016 |
8 180 Kč | |
| 2 | 46004030070 SPACER BUSHING 20X26X30X9,7 |
33 Kč | |
| 3 | 54603097000 NEEDLE BUSH HK 2016 |
221 Kč | |
| 4 | 0770160021 O-RING 16,00X2,00 VITON |
25 Kč | |
| 5 | 46004030071 BUSHING BOX 12X20X36,5 |
316 Kč | |
| 6 | 55003139900 BLIND RIVET THREAD M6 STE. 4MM |
55 Kč | |
| 7 | 45103014144 SWING ARM BOLT CPL. 2004 |
531 Kč | |
| 8 | 45213053000 LOCK WASHER 50 SX |
108 Kč | |
| 9 | 0934120103 HEXAGON NUT DIN0934-M12X1 |
23 Kč | |
| 11 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE\'96 |
29 Kč | |
| 12 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 14 | 46304070000 CHAIN GUIDE |
651 Kč | |
| 15 | 56509064100 SELF LOCKING NUT M6 10.9 |
21 Kč | |
| 16 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 17 | 0024060136 HH COLLAR SCREW M6X13 TX30 |
29 Kč | |
| 18 | 45010083000 CHAIN ADJUSTER |
255 Kč | |
| 19 | 45010083060 SUPPORTING BRACKET |
105 Kč | |
| 20 | 0926080003 STOP NUT DIN6926 M8 SS |
20 Kč | |
| 21 | 45204066000 CHAIN SLIDING GUARD |
190 Kč | |
| 22 | 0991060202 FLAT HEAD DIN7991-M 6X20 |
20 Kč | |
| 23 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 97 | 46304070044 CHAIN GUIDE KIT MINI |
651 Kč | |
| 98 | 45204066010 CHAIN GUARD KIT 50 SX |
190 Kč | |
| 99 | 45204230010 SWINGARM REP. KIT 50/65 SX |
1 100 Kč |
