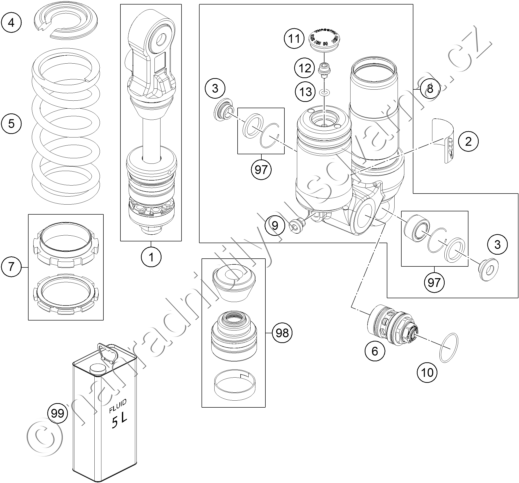

Díly pro SHOCK ABSORBER DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 36120781S16 AXLECLAMP PART WITH PISTON ROD |
5 243 Kč | |
| 2 | 52000173 STICKER WP WARNING |
190 Kč | |
| 3 | 46180009 SPACER BUSHING KGW 10X22 |
45 Kč | |
| 4 | 36120386 SPRING RET. H=3, D=14,5 |
454 Kč | |
| 5 | 93010217S SHOCK SPRING 35N/MM - 130MM WH |
3 138 Kč | |
| 5 | 93010218S SHOCK SPRING 30N/MM - 130MM WH |
3 138 Kč | |
| 5 | 93010219S SHOCK SPRING 40N/MM - 130MM WH |
3 138 Kč | |
| 6 | 50181101S7 DCC 50SX 2017 CPL. |
3 730 Kč | |
| 7 | 36120418S ADJUSTING NUT CPL. |
542 Kč | |
| 8 | 36120858S1 MONOSHOCK CASE WITH PIPE CPL. |
5 628 Kč | |
| 9 | 50180095 BLEED PLUG R 1/8 |
95 Kč | |
| 10 | 50180217 O-RING 27X1,5 VITON |
41 Kč | |
| 11 | 46811208 RUBBER CAP \'\'DO NOT OPEN\'\' |
57 Kč | |
| 12 | 36120151S PLUG SCREW M5X6 CPL. |
161 Kč | |
| 13 | 46810893 O-RING NBR 5,28X1,78 |
29 Kč | |
| 97 | R12012 REP. KIT BEAR./SEAL UP. 07 |
1 352 Kč | |
| 98 | RP10003 REP. KIT MONOSHOCK MINI 17 |
1 458 Kč | |
| 99 | 50180751S1 SHOCK ABSORBER FLUID 5 LT |
2 803 Kč |
