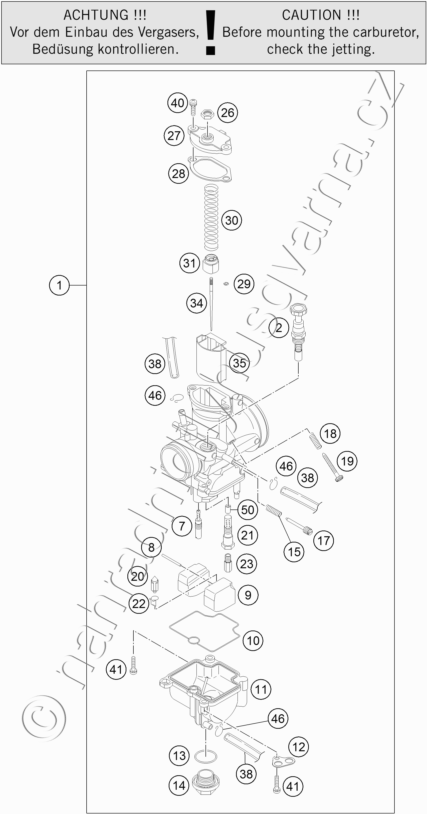

Díly pro CARBURETOR
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47231001044 CARBURETOR KEIHIN PWK 28 18 |
8 110 Kč | |
| 2 | 54631245000 STARTER PISTON CPL. |
1 814 Kč | |
| 7 | 54531607040 IDLE JET 40 KEIHIN |
220 Kč | |
| 7 | 54531607042 IDLE JET 42 KEIHIN |
220 Kč | |
| 7 | 54531607045 IDLE JET 45 KEIHIN |
220 Kč | |
| 7 | 54531607048 IDLE JET 48 KEIHIN |
220 Kč | |
| 7 | 54531607050 IDLE JET 50 KEIHIN |
220 Kč | |
| 7 | 54531607052 IDLE JET 52 KEIHIN |
220 Kč | |
| 8 | 57331008000 ARM PIN FLOAT |
60 Kč | |
| 9 | 47031009000 FLOAT CPL. PWK28 03 |
934 Kč | |
| 10 | 47031010000 FLOAT CHAMBER GASKET |
148 Kč | |
| 11 | 72531011000 |
Na dotaz | 1 |
| 12 | 54531612100 RETAINING PLATE FOR BLEEDER |
63 Kč | |
| 13 | 0770180230 O-RING 18,00X2,30 NBR 70 |
45 Kč | |
| 14 | 54531699000 PLUG M 18X1 |
347 Kč | |
| 15 | 54531615000 SPRING FOR ADJUSTMENT SCREW |
57 Kč | |
| 17 | 54531617000 ADJUSTMENT SCREW |
124 Kč | |
| 18 | 54631118000 SPRING |
108 Kč | |
| 19 | 54631219100 ADJUSTMENT SCREW M 5 |
174 Kč | |
| 20 | 47031020000 FLOAT NEEDLE CPL. |
469 Kč | |
| 21 | 72531022000 |
Na dotaz | 1 |
| 22 | 54531621000 CLAMP |
58 Kč | |
| 23 | 54531623142 |
Na dotaz | 1 |
| 23 | 54531623138 MAIN JET 138 KEIHIN |
246 Kč | |
| 23 | 54531623140 MAIN JET GR 140 |
223 Kč | |
| 23 | 54531623145 MAIN JET 145 |
Na dotaz | 0 |
| 23 | 54531623148 MAIN JET 148 KEIHIN |
Na dotaz | 0 |
| 23 | 54531623150 MAIN JET 150 KEIHIN |
246 Kč | |
| 23 | 54531623152 MAIN JET 152 KEIHIN |
238 Kč | |
| 26 | 52031126000 HEXAGON NUT M 6X0,75 DIN0439 |
23 Kč | |
| 27 | 47031027000 CARBURETOR COVER PWK28 03 |
701 Kč | |
| 28 | 47031028000 CARBURETOR COVER GASKET PWK28 |
114 Kč | |
| 29 | 54531629000 CLIP FOR JET NEEDLE |
47 Kč | |
| 30 | 47031030000 THROTTLE VALVE SPRING |
191 Kč | |
| 31 | 47031031000 SPRING CAP |
129 Kč | |
| 34 | 47231034000 JET NEEDLE KEIHIN NRKA |
251 Kč | |
| 34 | 47231034100 JET NEEDLE KEIHIN NRKB |
251 Kč | |
| 34 | 47231034200 JET NEEDLE KEIHIN NRKC |
251 Kč | |
| 34 | 47231034300 JET NEEDLE KEIHIN NRKD |
251 Kč | |
| 34 | 47231034400 JET NEEDLE KEIHIN NRKE |
251 Kč | |
| 34 | 47231134000 JET NEEDLE KEIHIN NRJA |
251 Kč | |
| 34 | 47231134100 JET NEEDLE KEIHIN NRJB |
251 Kč | |
| 34 | 47231134200 JET NEEDLE KEIHIN NRJC |
251 Kč | |
| 34 | 47231134300 JET NEEDLE KEIHIN NRJD |
251 Kč | |
| 34 | 47231134400 JET NEEDLE KEIHIN NRJE |
251 Kč | |
| 35 | 47231035000 THROTTLE VALVE \"3.0\" KEIHIN |
4 911 Kč | |
| 38 | 31007007101 PVC-HOSE 4X6MM |
76 Kč | |
| 40 | 0016040133 HH COLLAR SCREW M 4X13 WS=6 |
18 Kč | |
| 41 | 0985040163 FLAT HEAD SCREW DIN7985-M 4X16 |
17 Kč | |
| 46 | 54531696000 CLAMP 6 MM |
36 Kč | |
| 50 | 47231021000 NEEDLE JET |
643 Kč |
