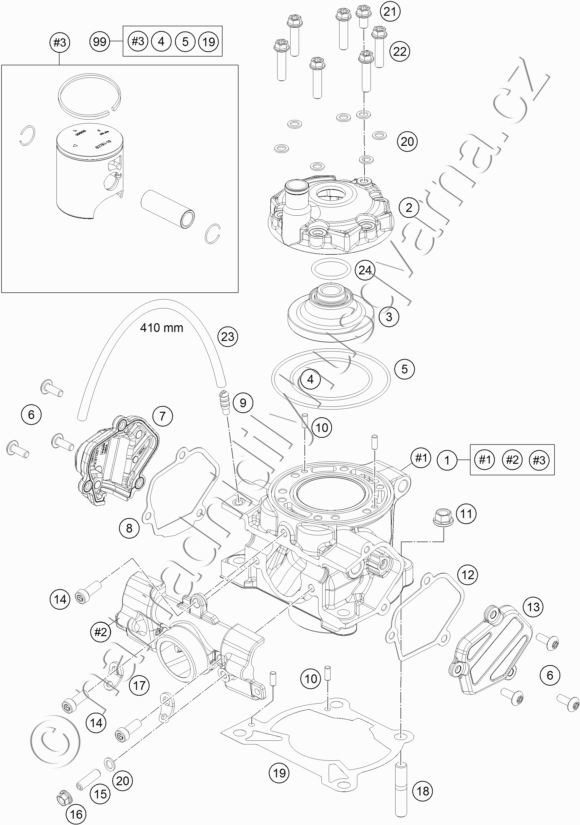

Díly pro CYLINDER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47230038000 CYLINDER + PISTON 85SX/TC85 |
17 845 Kč | |
| 2 | 47230006000 CYLINDER HEAD |
1 921 Kč | |
| 3 | 47230060000 COMBUSTION CHAMBER INLAY |
815 Kč | |
| 4 | 0770540020 O-RING 54X2 VITON |
154 Kč | |
| 5 | 0770800021 O-RING 80,00X2,00 VITON |
106 Kč | |
| 6 | 58605083014 SCREW M5X14 TORX 25 07 |
34 Kč | |
| 7 | 4723700700033 EXHAUST REGULATION COVER RH |
384 Kč | |
| 8 | 47237008000 EXHAUST CTRL COVER GASKET RHS |
222 Kč | |
| 9 | 58336020090 VACUUM CONNECTION M 6X1 |
116 Kč | |
| 10 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 11 | 46030045000 FLANGED NUT M8 WS10 |
87 Kč | |
| 12 | 47237006000 EXHAUST CTRL COVER GASKET LHS |
222 Kč | |
| 13 | 4723700500033 EXHAUST REGULATION VOVER LH |
384 Kč | |
| 14 | 014580060166 SHCS ISO 14580 M6X16 |
Na dotaz | 3 |
| 15 | 0913060203 THREAD PIN DIN0913-M 6X20 |
26 Kč | |
| 16 | 77336088106 COLLAR NUT M6X1 SW8 |
231 Kč | |
| 17 | 51005074000 RETAINING PLATE |
31 Kč | |
| 18 | 0835080256 STUD DIN0835-M 8X25 10.9 |
52 Kč | |
| 19 | 47230035020 CYLINDER GASKET |
286 Kč | |
| 19 | 47230035025 CYLINDER GASKET |
286 Kč | |
| 19 | 47230035040 CYLINDER GASKET |
286 Kč | |
| 19 | 47230035050 CYLINDER GASKET |
286 Kč | |
| 19 | 47230035075 CYLINDER GASKET |
286 Kč | |
| 20 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 21 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 22 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 23 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 24 | 07702300251 O-RING 23,00X2,5 NBR 70 SH |
17 Kč | |
| 99 | 00050000247 PISTON KIT I 85 SX/TC 18 |
3 525 Kč | |
| 99 | 00050000248 PISTON KIT II 85 SX/TC 18 |
3 525 Kč |
