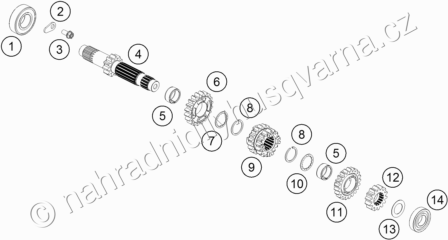

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 46033028000 GROOVED BALL BEARING 20X42X12 |
561 Kč | |
| 2 | 54634049000 RETAINING PLATE |
50 Kč | |
| 3 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 4 | 47233001050 INPUT SHAFT |
3 478 Kč | |
| 5 | 50133099000 NEEDLE CAGE K18X22X10 PARTED |
406 Kč | |
| 6 | 47233006000 IDLER GEAR 6 TH. |
1 682 Kč | |
| 7 | 47233043000 THRUST WASHER 19.1X24.5X1 |
49 Kč | |
| 8 | 0417200120 CIRCLIP WS20 |
Na dotaz | 2 |
| 9 | 47233003000 SLIDING GEAR 3 RD. |
2 077 Kč | |
| 10 | 47233042000 THRUST WASHER 19.1X24.5X1 |
49 Kč | |
| 11 | 47233005000 IDLER GEAR 5 TH. |
1 682 Kč | |
| 12 | 47233002000 FIXED GEAR 2ND |
1 174 Kč | |
| 13 | 47133041000 THRUST WASHER 16.1X26X0,5 |
49 Kč | |
| 14 | 47033026000 BALL BEARING 16X35X8 |
469 Kč |
