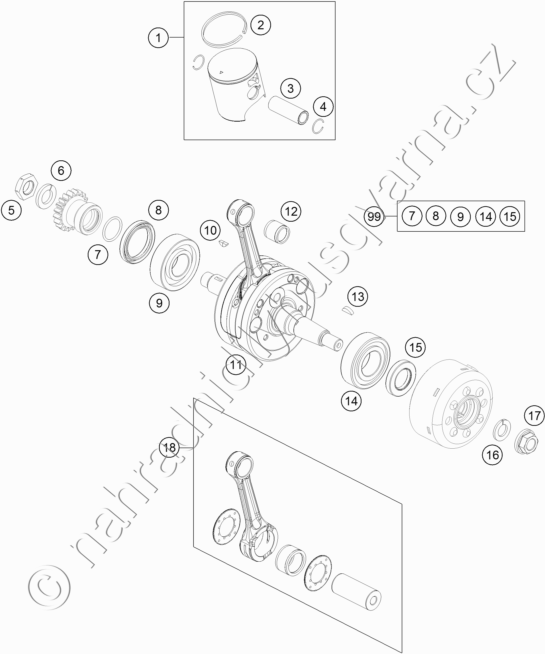

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47230007000 I PISTON CPL. SIZE 1 |
2 902 Kč | |
| 1 | 47230007000 II PISTON CPL. SIZE 2 |
2 902 Kč | |
| 2 | 47030030000 PISTON RING 85 SX 2003 |
648 Kč | |
| 3 | 47030033000 PISTON PIN 85 SX 2003 |
310 Kč | |
| 4 | 47030074000 WIRE LOCK RING 85 SX 2003 |
28 Kč | |
| 5 | 47230029000 NUT PRIMARY DRIVE GEAR |
126 Kč | |
| 6 | 47230029014 DETENT EDGED RING M14 |
29 Kč | |
| 7 | 0770210020 |
Na dotaz | 1 |
| 8 | 0760304261 OIL SEAL |
424 Kč | |
| 9 | 47030083000 BALL BEARING 22X52X15 |
456 Kč | |
| 10 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 11 | 47230018000 CRANKSHAFT CPL. |
11 797 Kč | |
| 12 | 47030034000 NEEDLE BEARING KBK 14X18X17 03 |
687 Kč | |
| 13 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 14 | 49030023000 CYLINDRICAL ROLLER BEARING NJ205 |
1 243 Kč | |
| 15 | 47030076100 SEAL SHAFT RING 20X35X6 BTSL |
143 Kč | |
| 16 | 50230029012 LOCKING RING VSK 12 |
25 Kč | |
| 17 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 18 | 47030015300 CONNECTING ROD REPAIR SET |
5 218 Kč | |
| 99 | 00050002318 CRANKSHAFT REP. KIT 85 |
2 229 Kč |
