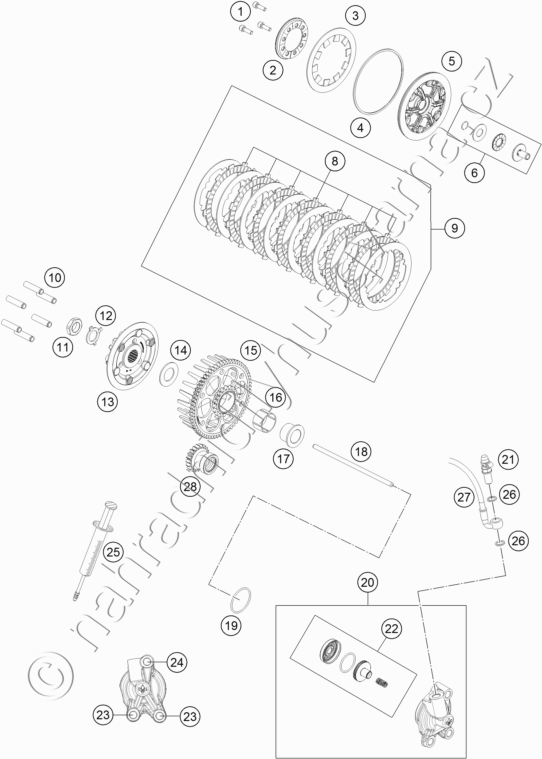

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0912050163 AH SCREW DIN0912-M 5X16 |
17 Kč | |
| 2 | 47232006000 SPRING DISK |
478 Kč | |
| 3 | 47232005000 CLUTCH SPRING 58X97.1X1.5 |
414 Kč | |
| 4 | 47232013000 INNER RING 94X99X1.5 |
158 Kč | |
| 5 | 47232003000 COUPLING PRESSURE PLATE |
962 Kč | |
| 6 | 78132057144 PRESSURE PIECE CPL. |
494 Kč | |
| 8 | 47232011000 LINING DISC 1,95MM |
390 Kč | |
| 9 | 47232010033 DISC PACK |
2 755 Kč | |
| 10 | 47232004000 SLEEVE 7.95X32.2 |
94 Kč | |
| 11 | 47232019000 HEXAGON NUT M16X1,5 |
158 Kč | |
| 12 | 47232018000 LOCK WASHER |
145 Kč | |
| 13 | 47232002000 INNER CLUTCH HUB |
1 601 Kč | |
| 14 | 47232017000 SUPPORT DISK |
222 Kč | |
| 15 | 47232001064 CLUTCH BASKET |
6 975 Kč | |
| 16 | 0405263017 NEEDLE CAGE K263017 |
190 Kč | |
| 17 | 47232015000 COLLAR 20X26X19 |
441 Kč | |
| 18 | 47232054000 ROD |
268 Kč | |
| 19 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 20 | 72132061044 OUTPUT CYLINDER CPL. |
4 005 Kč | |
| 21 | 72032064000 |
Na dotaz | 1 |
| 22 | 47132066000 PISTON CPL. |
716 Kč | |
| 23 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 24 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 25 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 26 | 0770080019 O-RING 8,00X1,00 FORMULA |
45 Kč | |
| 27 | 72032063000 CLUTCH PIPE |
Na dotaz | 1 |
| 28 | 47232023020 GEAR PRIMARY DRIVE |
2 304 Kč |
