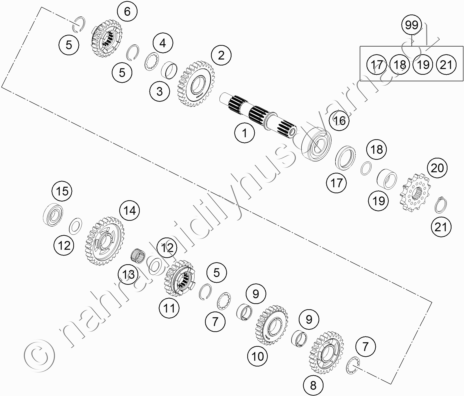

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47233010000 OUTPUT SHAFT CPL. |
2 880 Kč | |
| 2 | 47233012000 IDLER GEAR 2 ND. |
1 682 Kč | |
| 3 | 47233021000 BUSHING IDLER GEAR |
478 Kč | |
| 4 | 47233041000 THRUST WASHER 19.2X27.1X1 |
49 Kč | |
| 5 | 0417210120 CIRCLIP SW21 |
61 Kč | |
| 6 | 47233015000 SLIDING GEAR 5 TH. |
2 077 Kč | |
| 7 | 47233040000 THRUST WASHER 22X1.50X13X9H |
49 Kč | |
| 8 | 47233013000 IDLER GEAR 3 RD. |
1 682 Kč | |
| 9 | 50133099000 NEEDLE CAGE K18X22X10 PARTED |
406 Kč | |
| 10 | 47233014000 LOSRAD 4. GANG |
1 682 Kč | |
| 11 | 47233016000 SLIDING GEAR 6 TH. |
2 077 Kč | |
| 12 | 47133043000 THRUST WASHER 15.2X25X0.5 |
49 Kč | |
| 13 | 47033099000 NEEDLE BEARING K15X19X10S |
159 Kč | |
| 14 | 47233011000 IDLER GEAR 1 ST. |
1 682 Kč | |
| 15 | 0625160020 BALL BEARING 16002 C3 |
284 Kč | |
| 16 | 0625062041 BALL BEARING 6204 JR2 C4 |
398 Kč | |
| 17 | 0760263561 SHAFT SEAL RING 26X35X6BSL NB |
73 Kč | |
| 18 | 0770020180 O-RING 18,77X1,78 NBR 70 |
21 Kč | |
| 19 | 47233030000 SPACER CHAIN PINION |
350 Kč | |
| 20 | 47233029013 SPROCKET 13T |
360 Kč | |
| 21 | 49033091000 CIRCLIP AS20X1,75 |
28 Kč | |
| 99 | 00050000942 COUNTER SHAFT REP.KIT 105/85SX |
538 Kč |
