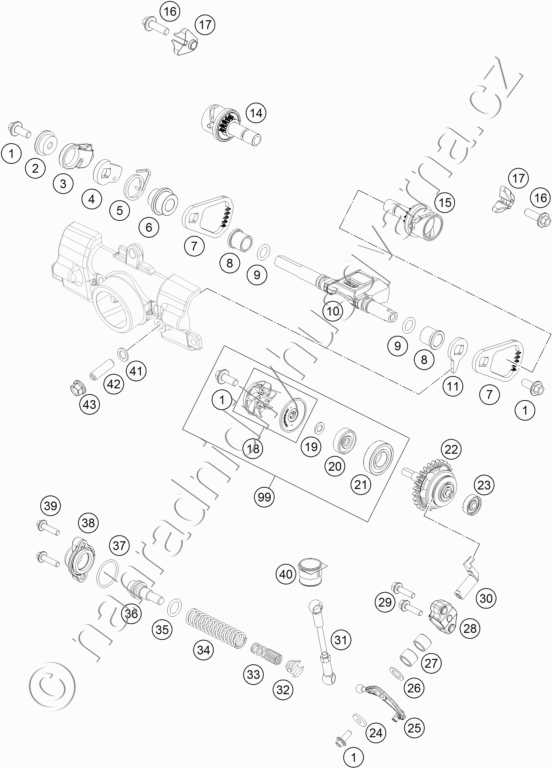

Díly pro EXHAUST CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 |
29 Kč | |
| 2 | 47237068000 BEARING BUSH |
130 Kč | |
| 3 | 47237077000 ADJUSTING LEVER |
863 Kč | |
| 4 | 47237036000 ATTACHMENT PLATE |
158 Kč | |
| 5 | 47237066000 OVERLOAD SPRING |
94 Kč | |
| 6 | 47237076000 DISTANCE BUSH |
214 Kč | |
| 7 | 47237067000 GEAR SEGMENT |
190 Kč | |
| 8 | 47237023000 ESHAUST FLAP BUSHING |
158 Kč | |
| 9 | 0770080201 O-RING 8,00X2,0 VITON |
20 Kč | |
| 10 | 47237020000 EXHAUST VALVE |
2 133 Kč | |
| 11 | 47237085000 LIMIT PLATE |
81 Kč | |
| 14 | 47237065033 |
Na dotaz | 1 |
| 15 | 47237064033 |
Na dotaz | 1 |
| 17 | 47237079000 GUIDE PIECE |
478 Kč | |
| 18 | 79235055044 WATER PUMP WHEEL CPL. |
222 Kč | |
| 19 | 50435049000 PREFORMED WASHER |
94 Kč | |
| 20 | 0760082472 SHAFT SEAL RING 8X24X7 A DUO |
61 Kč | |
| 21 | 0625160020 BALL BEARING 16002 C3 |
284 Kč | |
| 22 | 47237050044 CENTRIFUGAL GOVERNOR CPL. |
4 071 Kč | |
| 23 | 0625006065 |
Na dotaz | 1 |
| 24 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 25 | 47237056000 ANGLE LEVER |
767 Kč | |
| 26 | 0988101605 SHIM WASHER DIN988 10x16x0,5 |
Na dotaz | 1 |
| 27 | 0618101410 NEEDLE SLEEVE HK 1010 10X14X10 |
82 Kč | |
| 28 | 55437058000 BEARING SUPPORT |
262 Kč | |
| 29 | 0025050256 HH COLLAR SCREW M5X25 ISA30 |
20 Kč | |
| 30 | 47237057000 ADJUSTING LEVER 85/105 |
961 Kč | |
| 31 | 47237095044 LINKAGE CPL. |
507 Kč | |
| 32 | 54637071200 SPRING INSERT |
214 Kč | |
| 33 | 50437069050 SUPPORT SPRING |
50 Kč | |
| 34 | 47237072000 SETTING SPRING |
350 Kč | |
| 35 | 0770021120 O-RING 12,37X2,62 NBR70 |
21 Kč | |
| 36 | 54837075000 SPRING GUIDE 250/300 |
255 Kč | |
| 37 | 0770240020 O-RING 24,00X2,00 NBR70 |
18 Kč | |
| 38 | 54637070100 COVER LID 250-380\'98 |
265 Kč | |
| 39 | 0014050203 HH COLLAR SCREW M 5X20 WS=6 |
55 Kč | |
| 40 | 47237091000 SEALING ELEMENT |
318 Kč | |
| 41 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 42 | 0913060203 THREAD PIN DIN0913-M 6X20 |
26 Kč | |
| 43 | 77336088106 COLLAR NUT M6X1 SW8 |
231 Kč | |
| 99 | 50435055015 WATER PUMP REP. KIT |
587 Kč |
