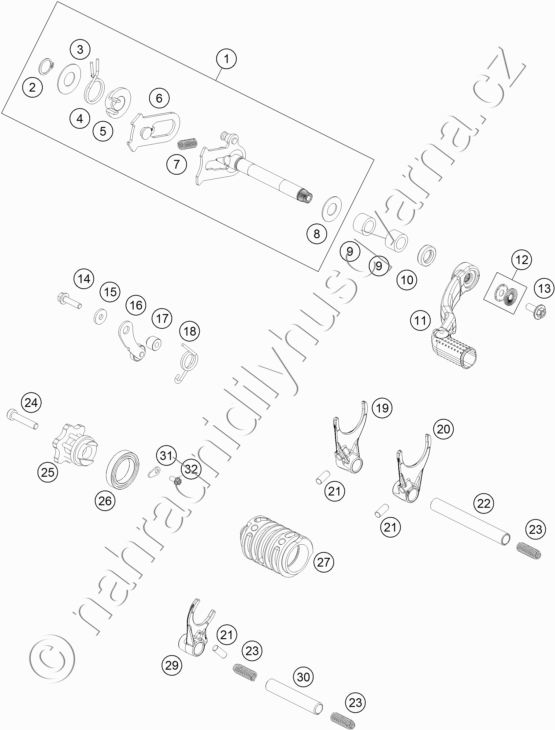

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47234005044 SHIFT SHAFT CPL. |
2 050 Kč | |
| 2 | 0471140100 RETAINING RING DIN 471 14X1 |
5 Kč | |
| 3 | 54634050000 STOP DISK 14X30X1 |
29 Kč | |
| 4 | 54834014000 RETURN SPRING 03 |
66 Kč | |
| 5 | 54634020000 SPRING GUIDE |
116 Kč | |
| 6 | 79234008144 SLIDING PLATE CPL. |
477 Kč | |
| 7 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
| 8 | 49033013000 STOP DISK 12,1X25X1 |
46 Kč | |
| 9 | 46034027000 NEEDLE BEARING 12X18X12 2002 |
107 Kč | |
| 10 | 0760122050 SHAFT SEAL RING 12X20X5 B |
68 Kč | |
| 11 | 50434031000 SHIFT LEVER CPL. |
1 493 Kč | |
| 12 | 50233041500 PAIR NORDLOCK WASHER M6 |
39 Kč | |
| 13 | 0024060156S HH COLLAR SCREW M6X15 TX30 |
12 Kč | |
| 14 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 15 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 16 | 55434024000 LOCKING LEVER CPL. |
959 Kč | |
| 17 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
| 18 | 50334023000 LOCATING LEVER SPRING 2,5MM\'98 |
84 Kč | |
| 19 | 47234002000 SHIFT FORK 1.-4. GEAR |
1 150 Kč | |
| 20 | 47234003000 SHIFT FORK 2.-3. GEAR |
1 150 Kč | |
| 21 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 |
50 Kč | |
| 22 | 47234019000 SHIFT RAIL 11.8X80X8MM |
180 Kč | |
| 23 | 58038023200 PRESSURE SPRING 0,9MM |
52 Kč | |
| 24 | 0984060302 AH SCREW DIN6912 M 6X30 |
21 Kč | |
| 25 | 79234015000 SHIFT DRUM LOCATING CPL. |
768 Kč | |
| 26 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 27 | 47234012044 SHIFT DRUM CPL. |
1 714 Kč | |
| 29 | 47234001000 SHIFT FORK 5.-6. GEAR |
1 150 Kč | |
| 30 | 46234020000 SHIFTING RAIL MAIN SHAFT |
257 Kč | |
| 31 | 54634049000 RETAINING PLATE |
50 Kč | |
| 32 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč |
